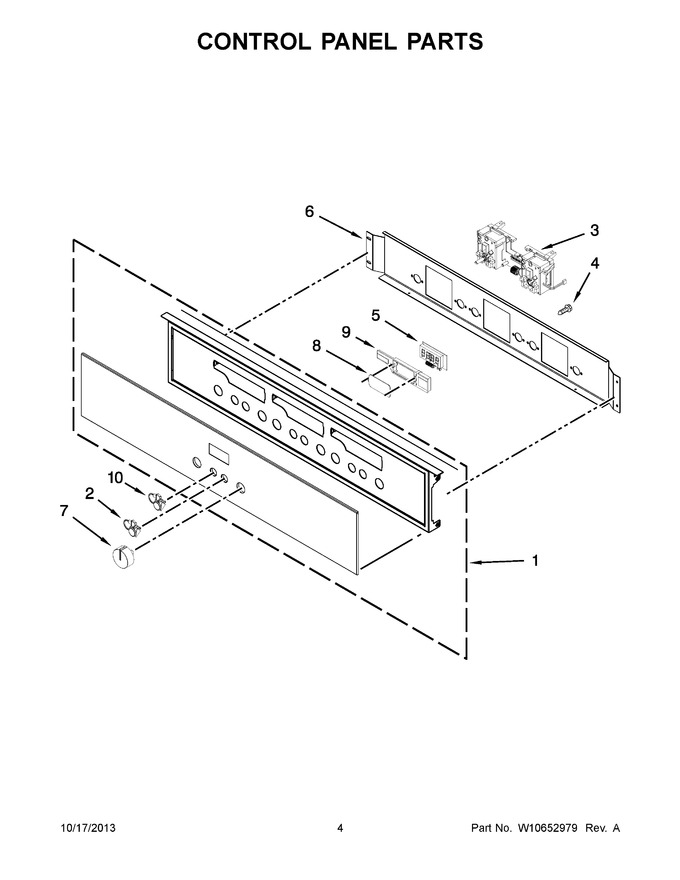

03 - Control Panel Parts
04 - Top Venting Parts
05 - Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10308278 | Panel, Control (black) |
|
- | |||||
| 1 | W10308260 | Panel, Control (stainless) |
|
$ 243.23 | |||||
| 2 | WPW10158961 | Switch, Enter (Replaces: W10158961) |
|
$ 111.47 | |||||
| 3 | 8303093 | User Interface |
|
$ 230.74 | |||||
| 4 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 5 | WP4452999 | Module, Display (Replaces: 4452999) |
|
Immediately | $ 293.49 | ||||
| 6 | W10646671 | Bracket, User Interface |
|
- | |||||
| 7 | W10320571 | Knob, Control |
|
$ 19.10 | |||||
| 8 | W10194089 | Filter, Display |
|
$ 12.13 | |||||
| 9 | 4453000 | Bracket, Display |
|
- | |||||
| 10 | W10158962 | Switch, Cancel |
|
$ 54.97 |
