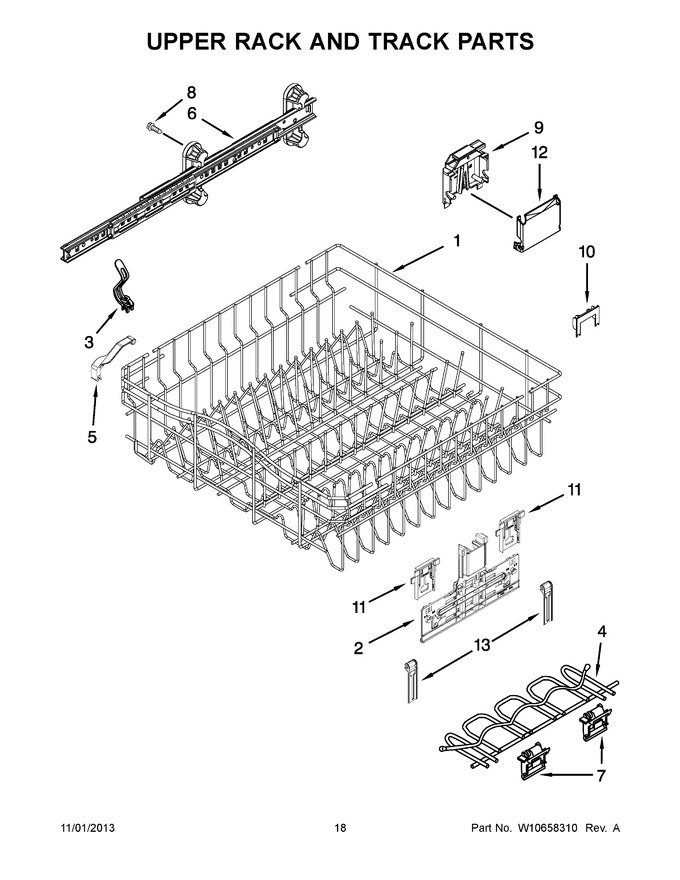

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11837101 | Dishrack, Upper (Replaces: W10194864) |
|
- | |||||
| 2 | WPW10546503 | Adjuster Assembly (Replaces: W10306646) |
|
Immediately | $ 44.92 | ||||
| 3 | WP8539101 | Clip, No-flip (Replaces: 8539101) |
|
$ 84.22 | |||||
| 4 | W10208697 | Cupshelf |
|
- | |||||
| 5 | WPW10267076 | Clip, Dispenser Guard (Replaces: W10267076) |
|
$ 31.56 | |||||
| 6 | W11259785 | Track, Assembly (left Hand) (Replaces: W10462359) |
|
Immediately | $ 95.63 | ||||
| 6 | W11259786 | Track, Assembly (right Hand) (Replaces: W10462358) |
|
Immediately | $ 102.26 | ||||
| 7 | 8562026 | Clip, Cupshelf |
|
$ 101.18 | |||||
| 8 | WPW10309090 | Screw (Replaces: W10309090) |
|
Immediately | $ 76.86 | ||||
| 9 | WPW10588164 | Housing Adjuster (left Hand) (Replaces: W10588164) |
|
Immediately | $ 19.90 | ||||
| 9 | WPW10588165 | Housing Adjuster (right Hand) (Replaces: W10588165) |
|
Immediately | $ 59.25 | ||||
| 10 | WPW10250160 | Clip Adjuster (Replaces: W10250160) |
|
Immediately | $ 51.66 | ||||
| 11 | WPW10195840 | Positioner, Adjuster (Replaces: W10195840) |
|
Immediately | $ 51.73 | ||||
| 12 | WPW10250162 | Cover, Adjuster (Replaces: W10250162) |
|
Immediately | $ 7.61 | ||||
| 13 | WPW10195839 | Strap, Tether Adjuster (Replaces: W10195839) |
|
Immediately | $ 36.29 |
