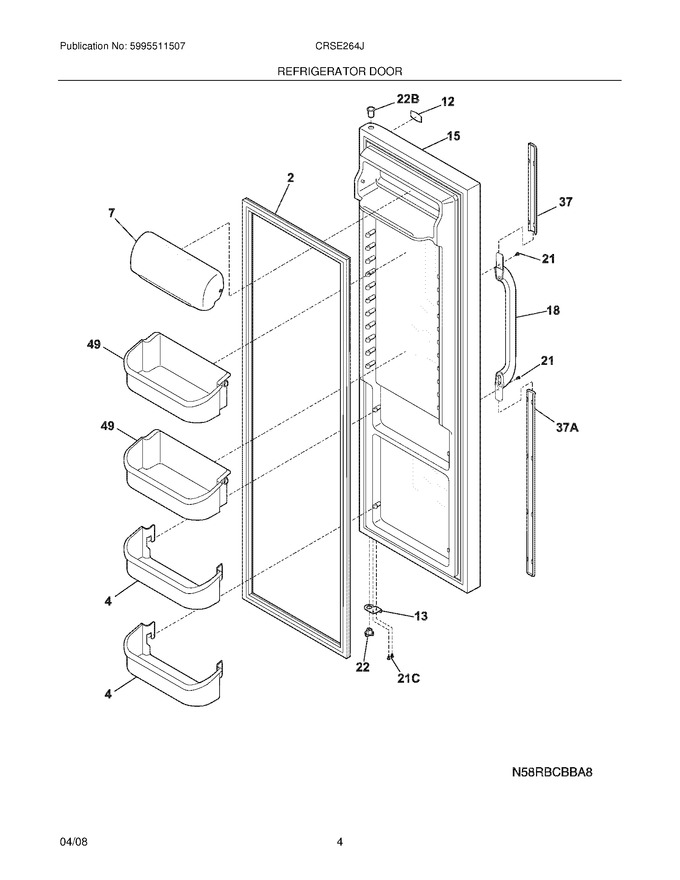

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786013		Gasket-refr Door,white ,magnetic   (Replaces: 241786001)				$ 95.90
4	240323002		Bin-door,pseudo ,bottom			Immediately	$ 67.21
7	240326203		Door-dairy				$ 40.37
12	240415205		Label-nameplate,white		Appelez-nous	-
13	240581901		Door Stop,white ,refr				$ 43.95
15	241629351		Door-refr,white ,complete Assy		Appelez-nous	-
18	218668401		Handle-door, White				$ 74.97
21	5304465886		Screw,no.8-18 X 9/16 ,truss Hd		Appelez-nous	-
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
37	215867083		Trim-handle, White, Upper, With Snap Lock				$ 73.07
49	240356415		Bin-door,gallon		Appelez-nous	-
21C	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
22B	240328402		Bearing-hinge,natural ,upper				$ 19.85
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37A	215867082		Trim-handle, White, Lower, With Snap Locks				$ 78.21
