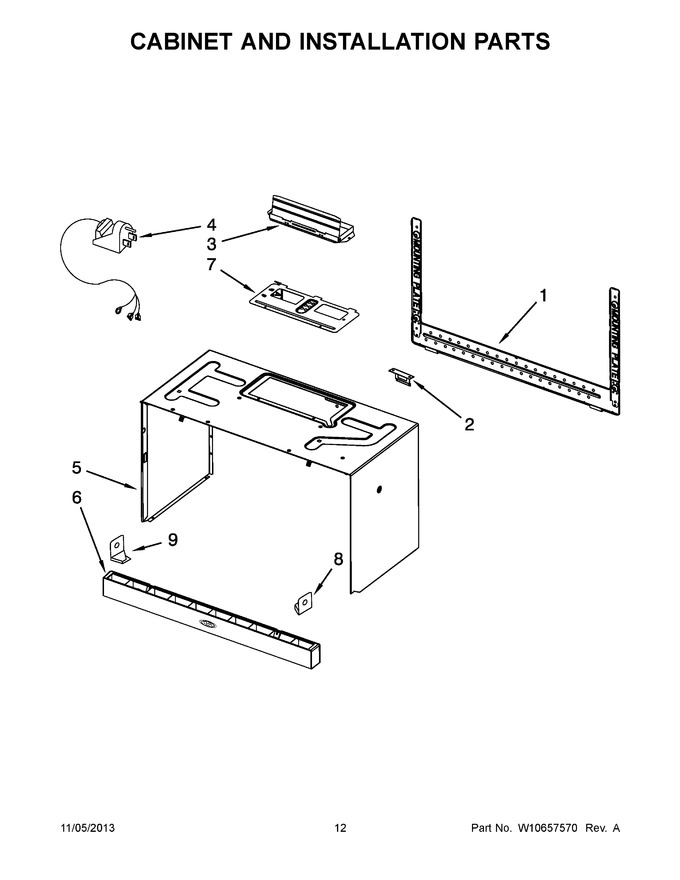

07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting Microwave   (Replaces: W10440498)			Immediately	$ 21.16
2	8206385		Support, Wire Clip				$ 31.89
3	W10843943		Damper   (Replaces: 8206442)			Immediately	$ 65.74
4	W10708076		Cord, Power   (Replaces: W10654511)				$ 18.48
5	WPW10462003		Case, Outer (white)   (Replaces: W10462003)				$ 250.22
5	WPW10462001		Case, Outer (black)   (Replaces: W10462001)				$ 255.01
5	W10461999		Case, Outer (bisque/biscuit)		Appelez-nous	-
6	W10468664		Grille, Vent (white)				$ 33.87
6	W10571504		Grille, Vent (stainless)				$ 30.27
6	WPW10468666		Grille, Vent (black)   (Replaces: W10468666)				$ 40.42
6	W10471684		Grille, Vent (biscuit)		Appelez-nous	-
7	W10210832		Cover, Hood Fan Motor				$ 6.68
8	W10703282		Vent Holder (right) (white)   (Replaces: W10393276)				$ 9.44
8	W10810989		Vent Holder (right) (black)   (Replaces: W10406307)				$ 8.76
9	W11026306		Vent Holder (left) (white)   (Replaces: W10393278)			Immediately	$ 6.47
9	W10830163		Vent Holder (left) (black)   (Replaces: W10406308)				$ 12.18
NI	8205948		Miscellaneous, Installation, Hardware				$ 23.06
NI	W10190018		Miscellaneous, Template, Upper			Immediately	$ 6.47
NI	WP8169704		Miscellaneous, 1/4-20x3`` Panhead Screw   (Replaces: 8169704)			Immediately	$ 10.07
NI	W10434800		Miscellaneous, Harness, Main Harness, Lamp And Turntable		Appelez-nous	-
NI	W10539840		Miscellaneous, Harness, Pcba Ground Wire				$ 21.50
NI	W10498567		Miscellaneous, Harness, Magnetron To High Voltage Transformer			Immediately	$ 21.04
