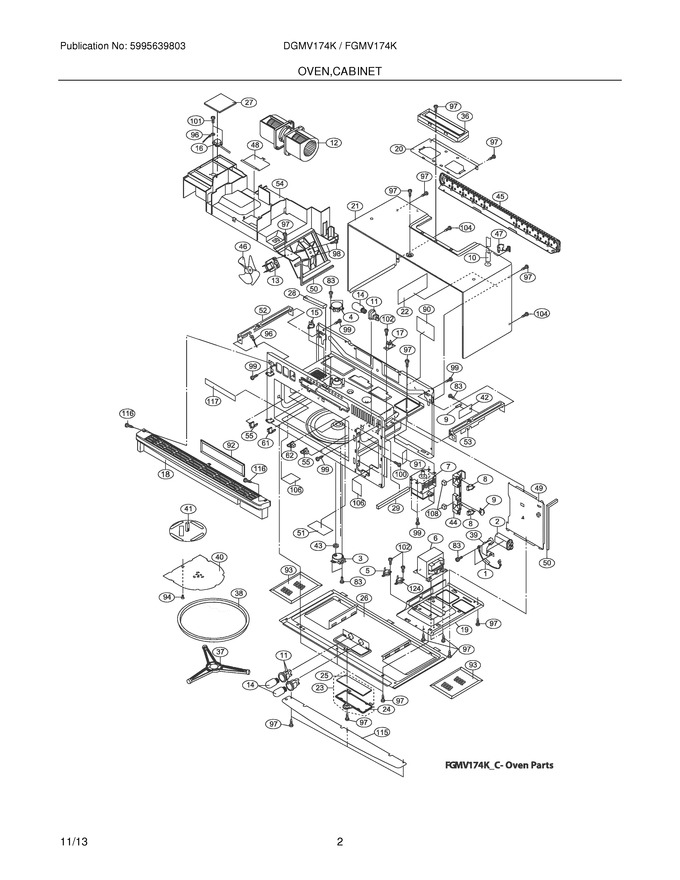

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5304440031		Lamp,incandescent ,20 W ,(3)			Immediately	$ 12.85
18	5304473796		Grille,exhaust ,stainless				$ 253.74
19	5304473797		Plate,base ,right		Appelez-nous	-
20	5304468162		Plate,rear Stay				$ 45.99
21	5304468164		Cabinet,outer Casing ,black				$ 183.23
22	5304473798		Wiring Diagram,schematic ,label		Appelez-nous	-
23	5303319573		Lens/frame Assy,lamp ,black				$ 117.34
24	5303319574		Frame,lens Holder ,black				$ 60.17
25	5303319575		Lens,cooktop Lamp ,glass				$ 104.94
26	5304473800		Cover,unit Base ,black		Appelez-nous	-
27	5304468170		Cushion,hood Duct		Appelez-nous	-
28	5304468173		Cushion,top Panel ,rubber		Appelez-nous	-
29	5304451500		Cushion,magnetron		Appelez-nous	-
36	5304464343		Damper Assembly,exhaust				$ 60.48
37	5304481789		Support Assy,turntable ,roller				$ 57.75
38	5304440285		Tray,turntable ,glass				$ 92.03
39	5304468174		Retainer,capacitor Strap				$ 11.42
40	5304468175		Cover,stirrer Fan				$ 49.23
43	5304467718		Bushing,motor Shaft ,turntable				$ 19.14
44	5304440289		Latch Hook				$ 102.11
45	5304468135		Bracket,mounting Plate ,rear				$ 101.93
47	5304467721		Bushing,grommet ,power Cord				$ 11.08
48	5304468178		Cover,oven Lamp				$ 14.52
49	5304468179		Duct,hood Intake ,right Side		Appelez-nous	-
50	5304468180		Cushion,intake Duct ,seal		Appelez-nous	-
51	5304467727		Lens,lamp Filter				$ 5.11
52	5304481791		Support,chassis ,left Side ,w/captive Nut				$ 54.07
53	5304481792		Support,chassis ,right Side ,w/captive Nut				$ 54.32
54	5304468183		Duct,exhaust Hood				$ 124.25
55	5304467733		Support,rack ,front				$ 13.12
61	5304467762		Support,rack ,left Rear				$ 14.32
62	5304467763		Support,rack ,right Rear				$ 15.81
83	5304451550		Screw,4 Mm X 8 Mm		Appelez-nous	-
90	5304467770		Label,caution-dhhs		Appelez-nous	-
91	5304467771		Label,caution-monitor		Appelez-nous	-
94	5304467773		Clip,canoe Type ,stirrer Cover				$ 55.67
97	5304502863		Screw,4 Mm X 8 Mm ,silver   (Replaces: 5304451552)				$ 10.85
97	5304467777		Screw,4 Mm X 8 Mm ,black				$ 16.30
98	5304462315		Screw,4 Mm X 12 Mm ,ground		Appelez-nous	-
99	5304467780		Screw,4 Mm X 8 Mm ,tap Tight				$ 13.46
100	5303319641		Screw,(2)				$ 12.76
101	5304467778		Screw,3 Mm X 8 Mm		Appelez-nous	-
102	5304467781		Screw,3 Mm X 6 Mm				$ 9.87
104	5304451557		Screw,4 Mm X 12 Mm		Appelez-nous	-
106	5304468191		Label,caution-dhhs		Appelez-nous	-
108	5304467769		Cushion,latch Hook ,pad				$ 9.45
115	5304473803		Deflector,black				$ 108.10
116	5304467710		Screw,3 Mm X 8 Mm				$ 14.18
117	5304473805		Label,menu		Appelez-nous	-
F1	5304467670		Rectifier,high Voltage				$ 55.91
F10	5304440028		Power Cord,electric				$ 119.07
F11	5303319561		Socket,oven Lamp   (Replaces: 5304461117)				$ 61.45
F12	5304492945		Motor,hood Fan				$ 267.70
F124	5304467699		Thermal Cutout,cavity/hood Fan ,70c				$ 28.35
F13	5304493152		Motor,cooling Fan   (Replaces: 5304448490)				$ 87.43
F15	5304440032		Thermal Cutout,oven Cavity				$ 26.99
F16	5304440033		Sensor,humidity ,cook Control				$ 223.65
F17	5303319550		Fuse,magnetron				$ 117.23
F2	5304470539		Capacitor,high Voltage				$ 145.76
F3	5304440021		Motor,turntable				$ 82.64
F4	5304440022		Motor,stirrer Fan				$ 69.14
F41	5304481790		Stirrer Assembly				$ 59.96
F42	5304492543		Filter,noise ,electronic   (Replaces: 5304467698)				$ 81.18
F46	5304468177		Fan Blade,mag Cooling Fan		Appelez-nous	-
F5	5304440023		Thermal Cutout,hood ,60c				$ 58.13
F6	5304468156		Transformer,power				$ 210.42
F7	5304463439		Magnetron				$ 257.99
F8	5304493153		Switch,interlock ,door Sensor   (Replaces: 5304440026)			Immediately	$ 83.38
F9	5304467695		Switch,monitor ,w/ceramic Fuse				$ 50.80
F92	5304440335		Filter,inside Exhaust ,charcoal				$ 50.32
F93	5303319568		Filter-grease, (2)			Immediately	$ 37.52
F96	5304467828		Wire,ground		Appelez-nous	-
