View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cook Top
03 - Burner
04 - Wiring Diagram
New Model Search:

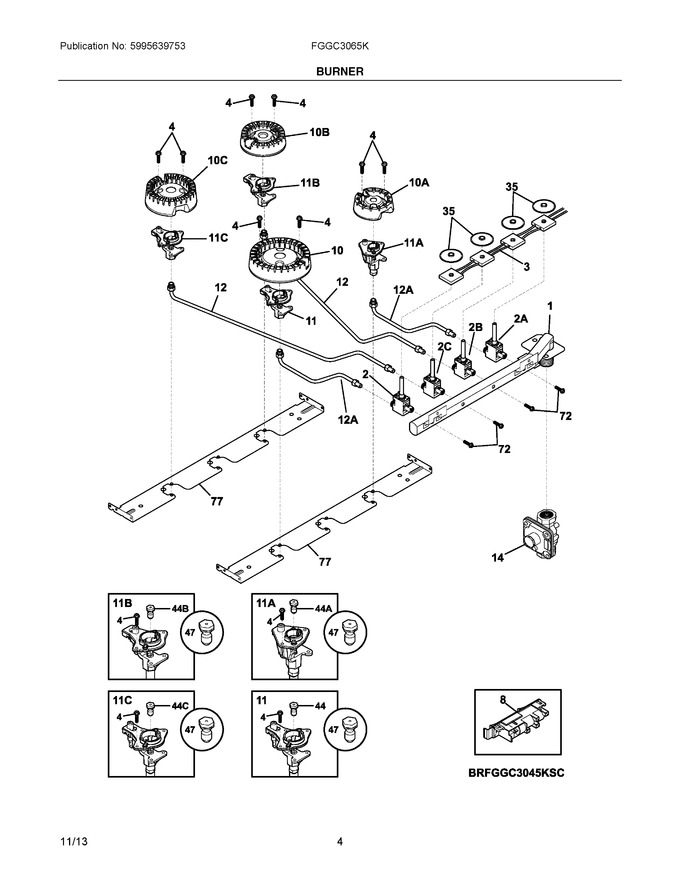

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318177020 | Manifold Pipe |
|
- | |||||
| 2 | 316271304 | Valve, Top Burner, 17k |
|
$ 117.66 | |||||
| 3 | 807211201 | Wiring Harness, W/igntr Switchs |
|
- | |||||
| 4 | 316240600 | Screw, Hex Wash, 6-32 X .485 (Replaces: 5304472956) |
|
Immediately | $ 12.13 | ||||
| 8 | 5304505695 | Module, Spark (Replaces: 316135702) |
|
Immediately | $ 68.16 | ||||
| 10 | 316438400 | Burner, Sealed, 17k |
|
Immediately | $ 83.42 | ||||
| 11 | 316543203 | Ignitor/orifice Assy., Top Burner, 17k, W/holder |
|
$ 12.20 | |||||
| 12 | 318560701 | Tube, Burner, Lf & Lr, (2) |
|
$ 37.85 | |||||
| 14 | 318122707 | Regulator, Pressure (Replaces: 318122712) |
|
$ 121.19 | |||||
| 35 | 807164301 | Bushing, Insulating |
|
- | |||||
| 44 | 316527509 | Orifice, Burner, 17k |
|
$ 19.85 | |||||
| 47 | 318565400 | Conversion Kit, Lp |
|
$ 90.04 | |||||
| 72 | 316215600 | Screw, Valve Mtg., 1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| 77 | 318564100 | Bracket, Transverse |
|
- | |||||
| 10A | 316438200 | Burner, Sealed, 5k |
|
Immediately | $ 56.70 | ||||
| 10B | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 52.45 | ||||
| 10C | 316438000 | Burner, Sealed, 12k |
|
$ 67.81 | |||||
| 11A | 316540800 | Ignitor/orifice Assy., Top Burner, 5k, W/holder |
|
$ 11.20 | |||||
| 11B | 316540700 | Ignitor/orifice Assy., Top Burner, 9.5k, W/holder |
|
$ 11.15 | |||||
| 11C | 316540702 | Ignitor/orifice Assy., Top Burner, 12k, W/holder |
|
Immediately | $ 12.85 | ||||
| 12A | 318560702 | Tube, Burner, Rf & Rr, (2) |
|
$ 45.73 | |||||
| 2A | 316271305 | Valve, Top Burner, 5k |
|
$ 111.28 | |||||
| 2B | 316271301 | Valve, Top Burner, 9.5k/12k |
|
$ 152.43 | |||||
| 2C | 316271302 | Valve, Top Burner, 12k |
|
$ 136.79 | |||||
| 44A | 316527504 | Orifice, Burner, 5k |
|
$ 22.68 | |||||
| 44B | 316527500 | Orifice, Burner, 9.5k |
|
$ 21.40 | |||||
| 44C | 316527502 | Orifice, Burner, 12k |
|
$ 22.68 | |||||
| NI | 5303323140 | Screw, Ground, 10-32 X 0.375 |
|
- | |||||
| NI | 5303311306 | Screw, 8-18 X 0.375, (4) |
|
- | |||||
| NI | 318024201 | Bracket, Spark Module |
|
$ 9.08 | |||||
| NI | 318199779 | Wiring Harness, Ignitor |
|
$ 129.10 | |||||
| NI | 134178901 | Screw, 8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303300195 | Screw, 10-32 X 0.375, (2) |
|
- |
