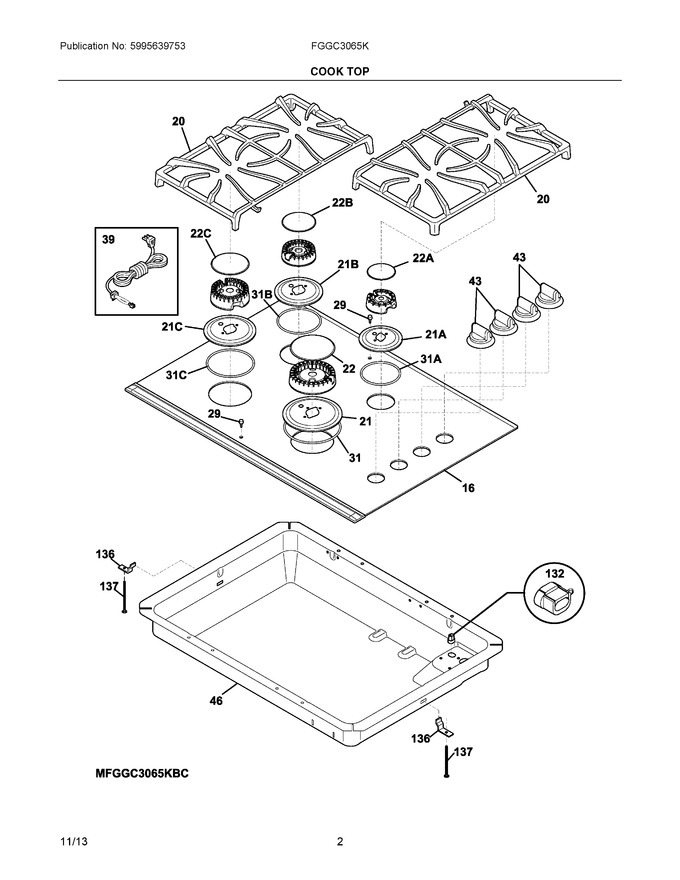

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318574601		Maintop Assembly, Glass/steel, Black/stainless, W/fnt-rear Trim		Appelez-nous	-
20	318560230		Grate, Burner, Black, (2)		Appelez-nous	-
21	318293204		Skirt, 17k Burner, Black		Appelez-nous	-
22	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 49.45
29	318147432		Locator, Grate, Rubber, (4)		Appelez-nous	-
31	316242004		Seal, 16k/17k Burner				$ 18.95
39	318144006		Cord, Service		Appelez-nous	-
43	316564625		Knob, Top Valve, Stainless		Appelez-nous	-
46	318278908		Box, Burner		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support, Box, (2)				$ 42.95
137	5303323138		Screw, 10-24x1/2				$ 14.13
21A	318293107		Skirt, 5k Burner, Black				$ 60.67
21B	318293007		Skirt, 9.5k Burner, Black				$ 65.22
21C	318292907		Skirt, 12k Burner, Black		Appelez-nous	-
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
22C	316261904		Cap, 12k Burner, Black				$ 46.36
31A	316242002		Seal, 5k/9.5k Burner				$ 25.02
31B	316242001		Seal, 9.5k/12k Burner				$ 23.06
31C	316242000		Seal, 12k/14k Burner				$ 73.71
NI	5303323171		Tape, Aluminum, 2		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	5303323140		Screw, Ground, 10-32 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
