01 - Cover Sheet

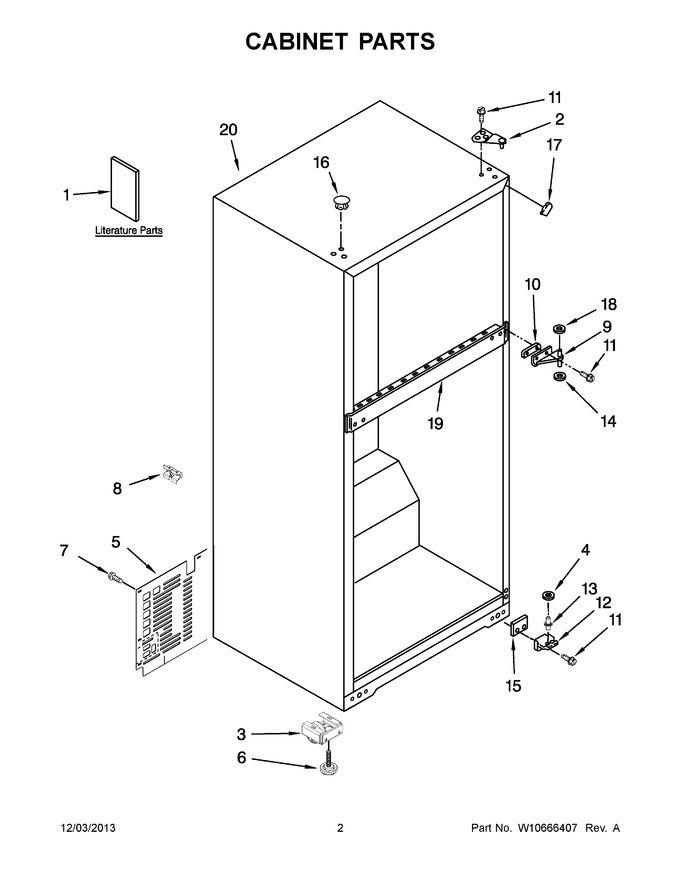

02 - Cabinet Parts
03 - Door Parts
04 - Liner Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10344152 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10335269 | Use & Care Guide |
|
- | |||||
| 1 | W10388619 | Use & Care Guide (chinese) |
|
- | |||||
| 2 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 89.51 | ||||
| 3 | WPW10142530 | Assembly, Roller (Replaces: W10142530) |
|
Immediately | $ 101.23 | ||||
| 4 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 5 | WP2264132 | Cover, Unit (Replaces: 2264132) |
|
$ 97.52 | |||||
| 6 | WPW10133299 | Leveler (Replaces: W10133299) |
|
$ 10.58 | |||||
| 7 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 8 | 2266506 | Spacer, Back |
|
$ 12.33 | |||||
| 9 | WP2166037 | Assembly, Center Hinge (Replaces: 2166086) |
|
$ 70.34 | |||||
| 10 | 2166043 | Shim, Hinge Center (white) |
|
$ 59.80 | |||||
| 11 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 12 | WP2325482 | Hinge, Bottom (Replaces: 2325482) |
|
Immediately | $ 68.57 | ||||
| 13 | WP2325483 | Pin, Bottom Hinge (Replaces: 2325483) |
|
Immediately | $ 6.47 | ||||
| 14 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 15 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
$ 6.99 | |||||
| 16 | WPW10520304 | Hole Plug (white) (Replaces: W10520304) |
|
Immediately | $ 16.47 | ||||
| 17 | W10859322 | Corner Filler (white) (Replaces: 2166003) |
|
$ 6.93 | |||||
| 18 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 9.79 | ||||
| 19 | N/P | Rail, Center (not Serviced |
|
- | |||||
| 20 | N/P | Cabinet (not A Serviceable Part) |
|
- |
