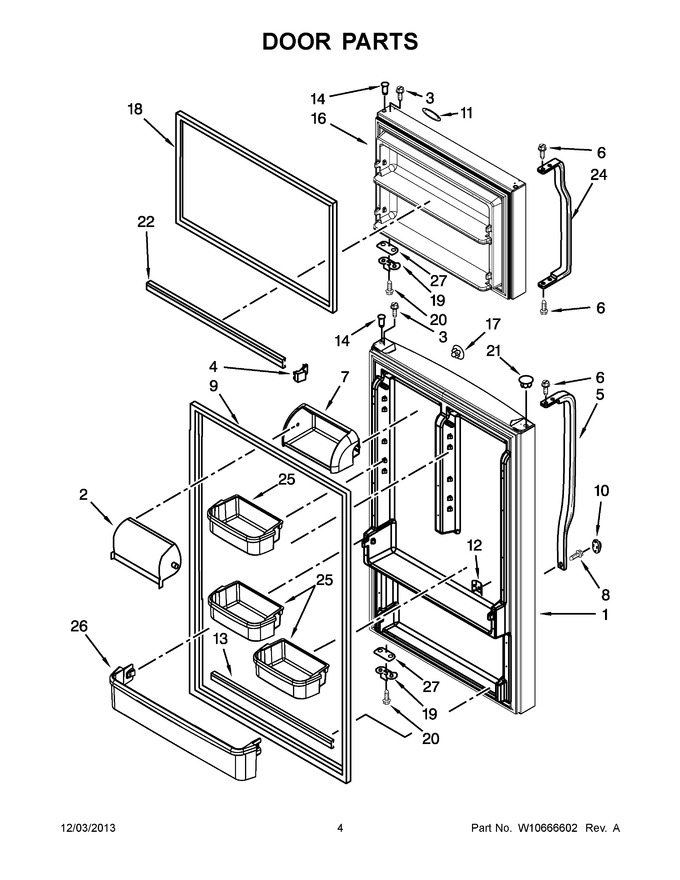

03 - Door Parts


04 - Liner Parts


05 - Unit Parts


06 - Shelf Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10427609		Door, Refrigerator (white)   (Replaces: W10427609)		Appelez-nous	-
2	2264478		Cover, Utility				$ 32.58
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.15
4	WP2156003		Cap, Door Trim End   (Replaces: 2156003)			Immediately	$ 11.36
5	WP2221946W		Handle, Refrigerator (white)   (Replaces: 2221946W)			Immediately	$ 117.10
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.47
7	2264477		Housing, Compartment				$ 83.18
8	WP8281206		Screw   (Replaces: 8281206)				$ 7.15
9	WP2319264T		Door Gasket, Magnetic (beige)   (Replaces: W10190032)			Immediately	$ 173.44
10	WP2202819W		Screw Cover (white)   (Replaces: 2202819W)			Immediately	$ 6.98
11	W11178521		Nameplate (grey)   (Replaces: W10481433)			Immediately	$ 56.82
12	WP939101		Screw Anchor   (Replaces: 939101)				$ 6.75
13	WPW10234241		Trim, Door Shelf   (Replaces: W10234241)			Immediately	$ 104.87
14	WP2183003		Thimble   (Replaces: 2262054)				$ 6.98
16	W10634447		Freezer Door (white)		Appelez-nous	-
17	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 6.66
18	WP2319263T		Door Gasket, Magnetic (beige)   (Replaces: W10190031)			Immediately	$ 152.58
19	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
20	WP488921		Screw   (Replaces: 488921)			Immediately	$ 6.98
21	WP2212648		Hole Plug (white)   (Replaces: 2212648)				$ 7.02
22	WP2266727		Trim, Door   (Replaces: 2266727)			Immediately	$ 83.25
24	WP2202098		Handle, Freezer (white)   (Replaces: 2202098)				$ 134.42
25	W11396038		Bin, Door   (Replaces: 2265126)				$ 138.81
26	WPW10468559		Trim, Door Shelf   (Replaces: W10468559)				$ 93.74
27	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 6.47
