| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

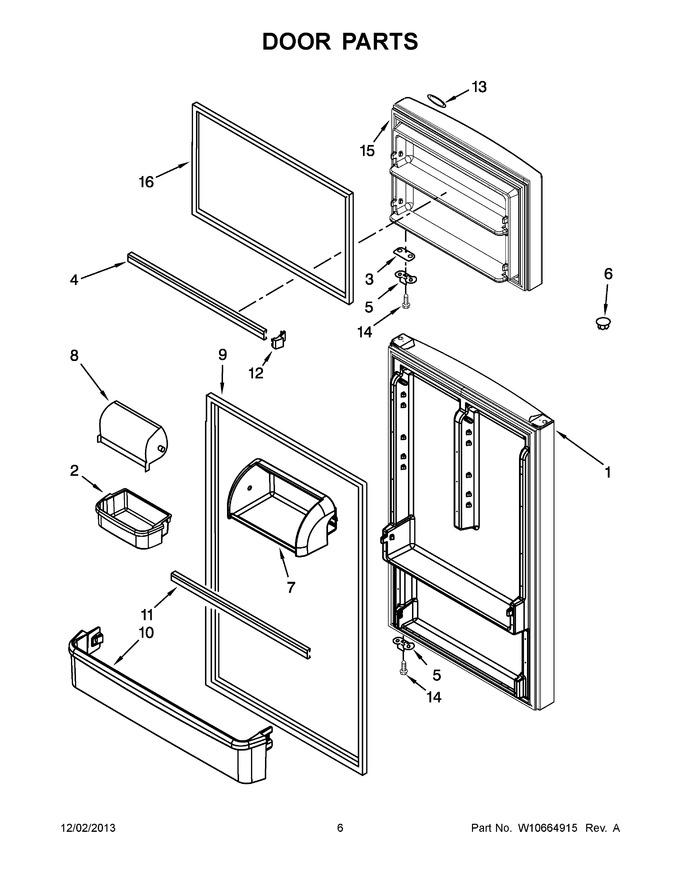

| 1 | W10252599 | Refrigerator Door (includes Illus. 9 & Molded Door Handle) (universal Silver) |
|
- | |||||
| 2 | W11396038 | Bin, Door (Replaces: 2265126) |
|
$ 138.81 | |||||
| 3 | 2258681B | Shim, Door Stop (black) |
|
$ 38.85 | |||||
| 4 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 83.25 | ||||
| 5 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 6 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 7 | 2264477 | Housing, Compartment |
|
$ 83.18 | |||||
| 8 | 2264478 | Cover, Utility |
|
$ 32.58 | |||||
| 9 | WP2319264B | Door Gasket, Magnetic (black) (Replaces: 2264723) |
|
$ 277.59 | |||||
| 10 | WPW10468559 | Trim, Door Shelf (Replaces: W10468559) |
|
$ 93.74 | |||||
| 11 | WPW10234241 | Trim, Door Shelf (Replaces: W10234241) |
|
Immediately | $ 104.87 | ||||
| 12 | WP2156003 | Cap, Door Trim End (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 13 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 56.82 | ||||
| 14 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.49 | |||||
| 15 | 2265678 | Freezer Door (includes Illus. 16 & Molded Door Handle) (universal Silver)] |
|
- | |||||
| 16 | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
Immediately | $ 229.95 |
