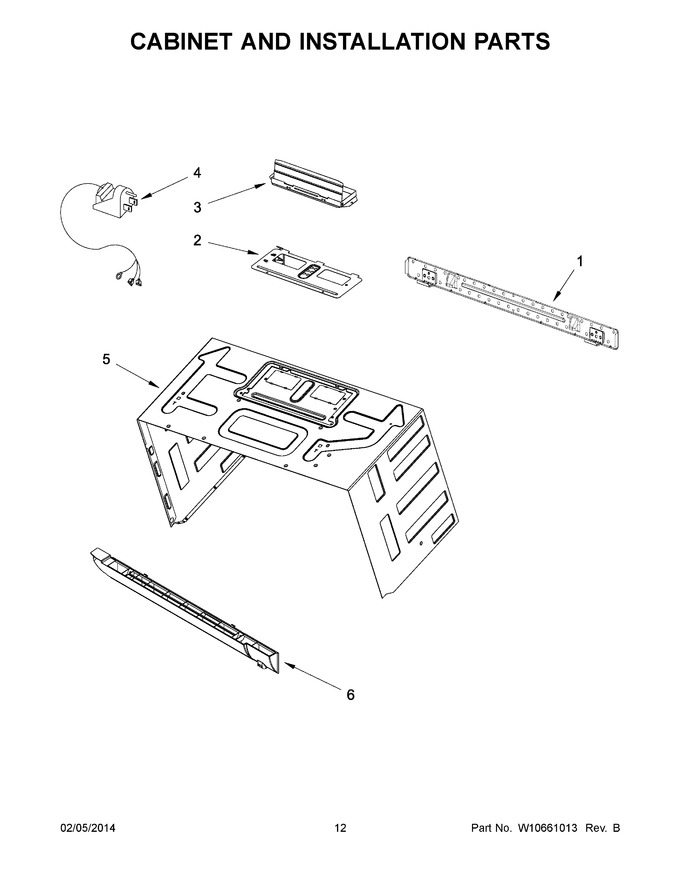

07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting Microwave (Replaces: W10440498) |
|
Immediately | $ 21.16 | ||||
| 2 | W10625423 | Cover, Fan Motor |
|
$ 69.87 | |||||
| 3 | W10843943 | Damper (Replaces: 8206442) |
|
Immediately | $ 65.74 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10269470) |
|
$ 18.48 | |||||
| 5 | W10571410 | Case, Outer (white) |
|
$ 159.31 | |||||
| 5 | WPW10571405 | Case, Outer (black) (Replaces: W10571405) |
|
$ 139.26 | |||||
| 6 | W10701696 | Grille, Vent (white) (Replaces: W10578334) |
|
$ 70.77 | |||||
| 6 | W10701697 | Grille, Vent (black) (Replaces: W10533491) |
|
$ 59.88 | |||||
| NI | W10539840 | Miscellaneous, Harness, Pcba Ground Wire |
|
$ 21.50 | |||||
| NI | W10569240 | Miscellaneous, Harness, Hood Lamp And Turntable Motor |
|
- | |||||
| NI | W10508747 | Miscellaneous, Harness, Door Control Light Cable |
|
- | |||||
| NI | W10821385 | Miscellaneous, Installation, Hardware (Replaces: 8206614) |
|
Immediately | $ 88.90 | ||||
| NI | W10190018 | Miscellaneous, Template, Upper |
|
Immediately | $ 6.47 | ||||
| NI | WP8169704 | Miscellaneous, 1/4-20x3`` Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| NI | W10665538 | Miscellaneous, Harness, Main |
|
- | |||||
| NI | W10508741 | Miscellaneous, Wire, Door Control Cable |
|
$ 20.21 |
