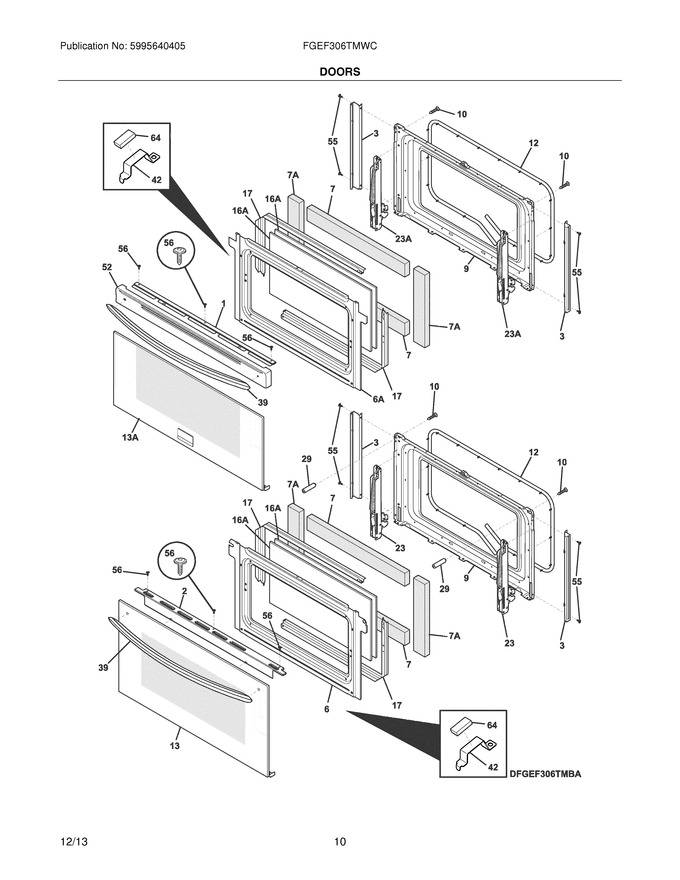

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318562703		Trim,top ,black ,upper Door		Appelez-nous	-
2	318260226		Trim,oven Door ,white ,upper				$ 56.54
3	318301431		Trim,oven Door ,white ,side		Appelez-nous	-
6	318260525		Baffle,door ,lower		Appelez-nous	-
7	318372017		Insulation,door				$ 16.30
9	318259682		Liner,door				$ 177.92
10	5304477986		Screw,10-24 X 1.770 ,lower Door ,handle Mtg				$ 16.22
10	5304459529		Screw,10-24 X 1 7/8 ,upper Door ,(2)				$ 10.12
12	318053154		Seal,oven Door				$ 93.87
13	318304183		Door Assembly,glass ,white ,lower Oven ,w/trim		Appelez-nous	-
17	318640200		Reatiner,glass ,inner ,(2)				$ 26.83
23	318567122		Hinge,door ,lower Oven ,(2)		Appelez-nous	-
29	318014411		Spacer,door				$ 18.48
39	318927400		Handle,door/drawer ,white				$ 216.62
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
52	318304209		Trim,door ,white ,upper				$ 396.22
55	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
56	5304448821		Screw,8-18 X 1/2 ,white ,(6)		Appelez-nous	-
64	318165800		Spacer				$ 17.72
13A	318934202		Glass Assembly,door ,white ,upper ,w/trim & Badge		Appelez-nous	-
16A	318212216		Glass,oven Door ,heat Barrier ,hbii				$ 160.76
23A	318567120		Hinge,door ,upper Oven ,(2)				$ 96.65
6A	318260528		Baffle,door ,upper		Appelez-nous	-
7A	318372018		Insulation,20.5 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372015)				$ 14.18
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5304440228		Washer,flat		Appelez-nous	-
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	316433603		Label,anti-tip				$ 3.55
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
