SELECT A DIAGRAM

01 - Cover Sheet

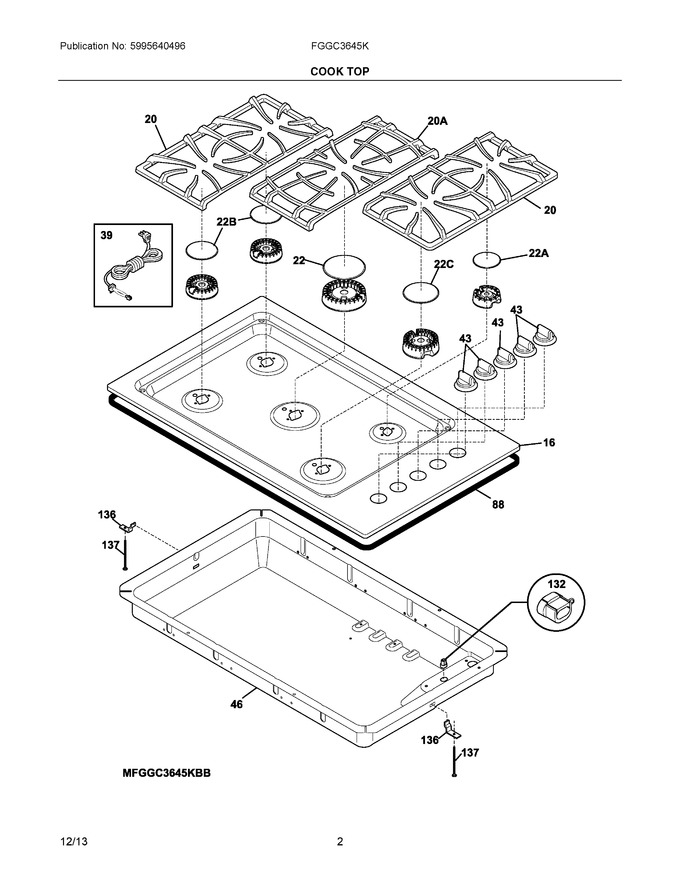

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318560026		Maintop, Assembly, Black		Appelez-nous	-
20	318560210		Grate, Burner, Black, (2)		Appelez-nous	-
22	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 49.45
39	318144006		Cord, Service		Appelez-nous	-
43	316564627		Knob, Top Valve, Black				$ 39.69
46	318279006		Box, Burner		Appelez-nous	-
88	318280121		Gasket, Cooktop, 93				$ 156.92
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support, Box, (2)				$ 42.95
137	5303323138		Screw, 10-24x1/2				$ 14.13
20A	318560440		Grate, Black, Center				$ 243.63
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
22C	316261904		Cap, 12k Burner, Black				$ 46.36
NI	5303323171		Tape, Aluminum, 2		Appelez-nous	-
NI	5303307980		Screw, 8-32 X 0.437, (4)			Immediately	$ 14.18
NI	5303323140		Screw, Ground, 10-32 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
