Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2801W036-80 Assembly,plenum Appelez-nous -
2 2822W001-80 Assembly, Scroll Appelez-nous -
3 4026F008-51 Ring, Inlet Special Order $ 7.43

4 WPW10241953 Motor, Blower   (Replaces: W10241953) Special Order $ 269.71

5 WPY707985 Wheel, Blower   (Replaces: 7114P005-60) In-Stock Immediately $ 145.55

6 WPY707702 Nut, Lock   (Replaces: 7103P162-60) In-Stock Immediately $ 6.26

7 7109P086-60 Washer Appelez-nous -
8 WP74010782 Filter, Grease   (Replaces: 8312P240-60) Special Order $ 43.65

9 8312P151-60 Guard, Blower Appelez-nous -
10 4026F009-51 Ring, Restrictor Special Order $ 51.50

11 8038P003-60 Retainer Special Order $ 9.13

12 7201P146-60 Gasket, Plenum Appelez-nous -
13 4005F648-80 Cover, Plenum Special Order $ 52.33

14 3804F188-50 Retainer, Filter Appelez-nous -
15 W11233072 Screw   (Replaces: 7101P634-60) In-Stock Immediately $ 12.62


    View Diagram in Separate Window     Print Icon   Print Part List

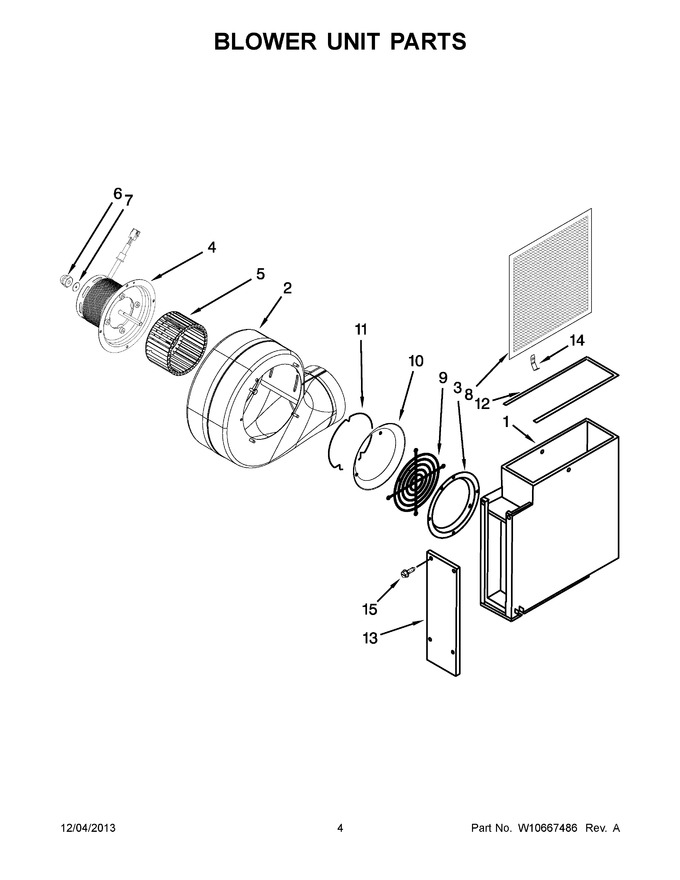

Diagram for KGCD807XSS02
