| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10656486 |
|
Base Frame |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W10656490 |
|
Tilting Frame |
|
Appelez-nous
|
- |
|
|
|
| 3 |
W10656492 |
|
Tilting Cabinet Complete |
|
Appelez-nous
|
- |
|
|
|
| 4 |
W10656493 |
|
Switch Holder 1 Complete |
|
Appelez-nous
|
- |
|
|
|
| 6 |
W10656494 |
|
Bushing |
|
Appelez-nous
|
- |
|
|
|
| 7 |
W10657207 |
|
Pin |
|
Appelez-nous
|
- |
|
|
|
| 8 |
W10656367 |
|
Bolt M6 X 10 |
|
Appelez-nous
|
- |
|
|
|
| 9 |
23003767 |
|
Washer M6.4 |
|
Appelez-nous
|
- |
|
|
|
| 10 |
23002756 |
|
Lockwasher, M6 |
|
Appelez-nous
|
- |
|
|
|
| 11 |
23003773 |
|
Nut M6 |
|
Appelez-nous
|
- |
|
|
|
| 12 |
23002505 |
|
Grounding Plate |
|
Appelez-nous
|
- |
|
|
|
| 13 |
23003079 |
|
Bolt M12x40 |
|
Appelez-nous
|
- |
|
|
|
| 14 |
23002657 |
|
Washer M13 |
|
Appelez-nous
|
- |
|
|
|
| 15 |
23003670 |
|
Nut M12 |
|
Appelez-nous
|
- |
|
|
|
| 16 |
W10657096 |
|
Bracket |
|
Appelez-nous
|
- |
|
|
|
| 17 |
W10657098 |
|
Washer |
|
Appelez-nous
|
- |
|
|
|
| 18 |
W10657099 |
|
Washer |
|
Appelez-nous
|
- |
|
|
|
| 19 |
W10656306 |
|
Air Bag Lower Support |
|
Appelez-nous
|
- |
|
|
|
| 20 |
W10657100 |
|
Switch Holder 2 |
|
Appelez-nous
|
- |
|
|
|
| 21 |
W10656374 |
|
Switch Washer |
|
Appelez-nous
|
- |
|
|
|
| 22 |
W10656381 |
|
Switch Washer |
|
Appelez-nous
|
- |
|
|
|
| 23 |
23002862 |
|
Washer M5.3 |
|
Appelez-nous
|
- |
|
|
|
| 24 |
23002836 |
|
Washer M5 |
|
Appelez-nous
|
- |
|
|
|
| 25 |
8169480 |
|
Bolt M5 X 12 (Replaces: 23003480) |
|
|
|
$ 11.15 |
|
|
| 26 |
23003774 |
|
Washer M6 X 4 |
|
Appelez-nous
|
- |
|
|
|
| 27 |
20007283 |
|
Washer M6 (Replaces: 23002440) |
|
|
|
$ 504.91 |
|
|
| 28 |
23004114 |
|
Bolt M6x16 (Replaces: 23002461) |
|
Appelez-nous
|
- |
|
|
|
| 29 |
DC60-50145A |
|
Nut M10 (Replaces: 23001661) |
|
|
|
$ 2.39 |
|
|
| 30 |
W10657101 |
|
Bolt M10 X 35 |
|
Appelez-nous
|
- |
|
|
|
| 31 |
W10656301 |
|
Rubber Stop-modification |
|
Appelez-nous
|
- |
|
|
|
| 32 |
23001203 |
|
Washer M8.4x24x2 |
|
Appelez-nous
|
- |
|
|
|
| 33 |
23002358 |
|
Washer, Lock M8 |
|
Appelez-nous
|
- |
|
|
|
| 34 |
23001264 |
|
Bolt M8x20 |
|
Appelez-nous
|
- |
|
|
|
| 37 |
W10656482 |
|
Bolt M10 X 12 |
|
Appelez-nous
|
- |
|
|
|
| 38 |
W10656454 |
|
Position Switch |
|
Appelez-nous
|
- |
|
|
|
| 39 |
W10656478 |
|
Safety Switch |
|
Appelez-nous
|
- |
|
|
|

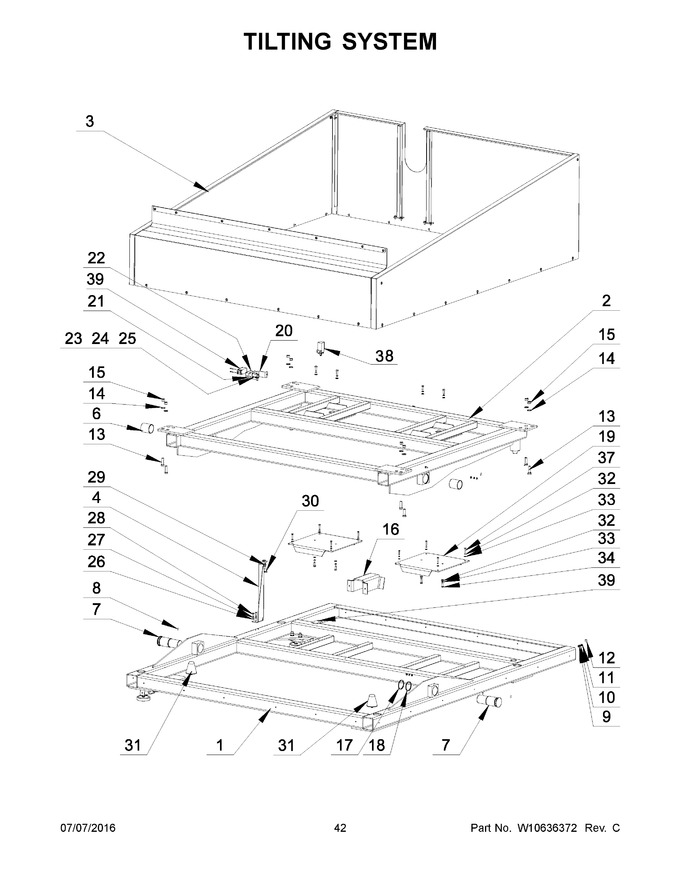

View Diagram in Separate Window
