01 - Cover Sheet
02 - Control Panel Parts

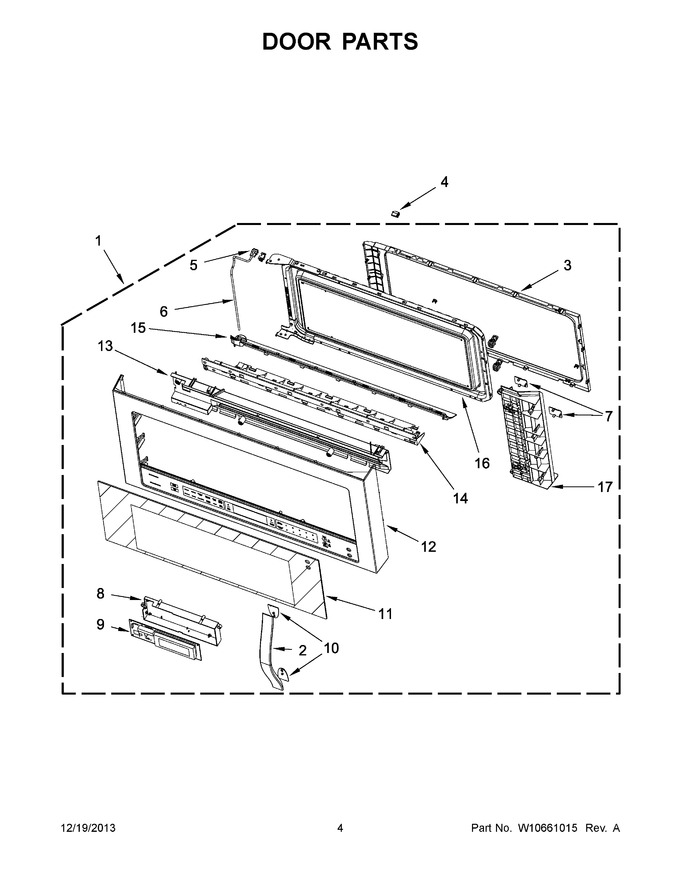

03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10860354 | Door, Complete (black) (Replaces: W10625368) |
|
- | |||||
| 1 | W10860355 | Door, Complete (white) (Replaces: W10625369) |
|
- | |||||
| 1 | W10625370 | Door, Complete (stainless) |
|
- | |||||
| 1 | W10860357 | Door, Complete (black Ice) (Replaces: W10631867) |
|
- | |||||
| 1 | W10860358 | Door, Complete (white Ice) (Replaces: W10631868) |
|
- | |||||
| 2 | W10571332 | Handle (black) |
|
- | |||||
| 2 | W10571333 | Handle (white) |
|
- | |||||
| 2 | W10478162 | Handle (stainless) |
|
- | |||||
| 3 | W10647773 | Frame, Inner (for White & White Ice Models) |
|
$ 76.63 | |||||
| 3 | W10647772 | Frame, Inner (for Black, Stainless & Black Ice Models) |
|
$ 85.98 | |||||
| 4 | W10643975 | Stopper, Door (for White & White Ice Models) |
|
$ 19.47 | |||||
| 4 | W10643974 | Stopper, Door (for Black, Stainless & Black Ice Models) |
|
$ 19.41 | |||||
| 5 | W10478659 | Holder, Door Cable |
|
- | |||||
| 6 | W10508745 | Wire, Door Control Cable |
|
$ 24.86 | |||||
| 7 | W10478657 | Cover, Screw (black) |
|
Immediately | $ 19.25 | ||||
| 7 | W10571119 | Cover, Screw (white) |
|
- | |||||
| 8 | W10478216 | Holder, Ui |
|
- | |||||
| 9 | WPW10508737 | Control (Replaces: W10508737) |
|
$ 218.52 | |||||
| 10 | W10478213 | Cushion, Handle |
|
- | |||||
| 11 | WPW10531174 | Glass, Outer (white Ice) (Replaces: W10531174) |
|
$ 188.63 | |||||
| 11 | WPW10478721 | Glass, Outer (black) (Replaces: W10478721) |
|
$ 151.79 | |||||
| 11 | WPW10478716 | Glass, Outer (white) (Replaces: W10478716) |
|
$ 169.77 | |||||
| 11 | W10478675 | Glass, Outer (stainless (also Used On Black Ice Model)) |
|
- | |||||
| 12 | W10648080 | Assembly, Door Frame (white) |
|
- | |||||
| 12 | W10648083 | Assembly, Door Frame (black Ice) |
|
- | |||||
| 12 | W10578583 | Assembly, Door Frame (stainless) |
|
- | |||||
| 12 | W10648081 | Assembly, Door Frame (black) |
|
$ 319.30 | |||||
| 12 | W10648082 | Assembly, Door Frame (white Ice) |
|
- | |||||
| 13 | W10476553 | Cover, Ui (for White & White Ice Models) |
|
- | |||||
| 13 | W10478222 | Cover, Ui (for Black, Stainless & Black Ice Models) |
|
- | |||||
| 14 | W10476546 | Bracket, Door |
|
- | |||||
| 15 | W10570992 | Frame, Back Decorating (white) |
|
- | |||||
| 15 | W10476550 | Frame, Back Decorating (black) |
|
- | |||||
| 16 | W10648084 | Body, Door (with Glass) (for Black, Stainless & Black Ice Models) |
|
$ 169.18 | |||||
| 16 | W10648085 | Body, Door (with Glass) (for White & White Ice Models) |
|
- | |||||
| 17 | W10571118 | Bracket, Outer Door (white) |
|
- | |||||
| 17 | W10478656 | Bracket, Outer Door (black) |
|
- |
