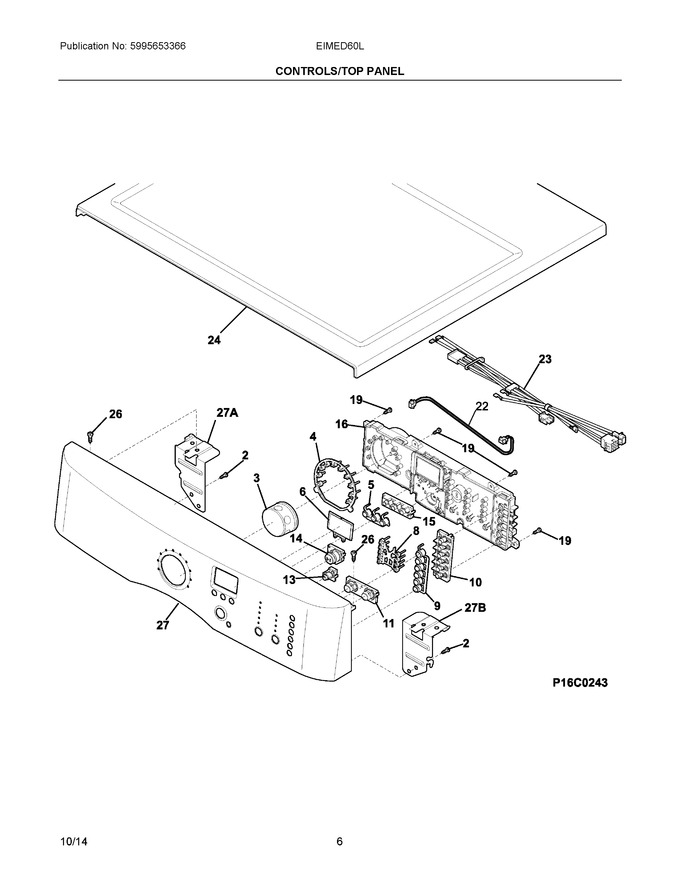

04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
3	134766500		Knob, Retracting, Complete Asmy				$ 175.72
4	134907400		Pipe, Knob Light				$ 14.56
5	134872100		Ring, Display Button, Light		Appelez-nous	-
6	134767700		Lens, Lcd				$ 14.89
8	134902210		Pipe, Modifier Light, Group 2&3		Appelez-nous	-
9	134894200		Ring, Option Button, Light		Appelez-nous	-
10	137032300		Button, Option		Appelez-nous	-
11	137032200		Button, Modifier, Button 2 & 3		Appelez-nous	-
13	137032000		Button, Off		Appelez-nous	-
14	137015900		Button, Start/pause				$ 32.42
15	137031900		Button, Display				$ 58.12
16	134994720		Control Board, Printed Circuit, With Housing		Appelez-nous	-
19	134402900		Screw, Phillips, 6-19 X 0.650				$ 29.77
22	134790700		Harness, User Interface				$ 88.36
23	137242300		Harness, Main, Mist				$ 194.62
24	134638535		Panel, Work Top, Titanium				$ 229.53
26	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 14.18
27	137378235		Panel, Control Console, Titanium				$ 161.20
27A	134710900		Bracket, Control Panel, Left Hand, Mounting				$ 21.27
27B	134711000		Bracket, Control Panel, Right Hand, Mounting				$ 23.63
NI	134926600		Damper, Sound				$ 14.18
NIA	137150200		Terminal Block Kit, Main				$ 31.90
