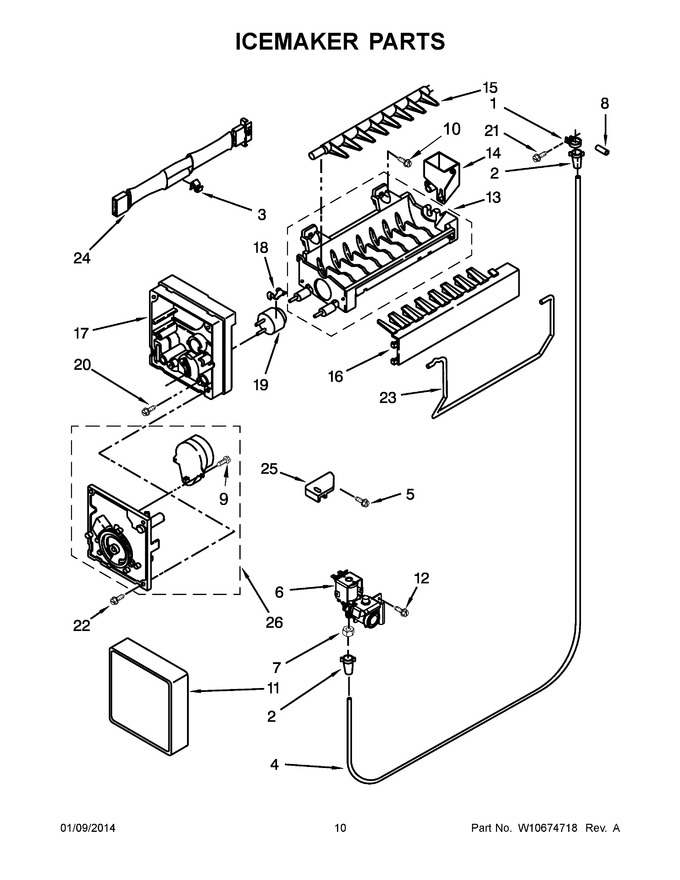

06 - Icemaker Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 10.44 | |||||
| 2 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.06 | |||||
| 3 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 9.51 | |||||
| 4 | W10823511 | Tube Water (Replaces: 2181944) |
|
Immediately | $ 29.17 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 6 | WP2315576 | Valve, Solenoid (Replaces: 2210494) |
|
Immediately | $ 86.38 | ||||
| 7 | WP627018 | Nut, Compression (Replaces: 627018) |
|
$ 9.87 | |||||
| 8 | 2174755 | Tube, Water Inlet |
|
$ 22.18 | |||||
| 9 | 489136 | Screw |
|
$ 9.26 | |||||
| 10 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 | |||||
| 11 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 7.56 | ||||
| 12 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 13 | WPW10190929 | Assembly, Mold And Heater (Replaces: W10122527) |
|
$ 209.84 | |||||
| 14 | W11676540 | Cup, Water Fill (Replaces: W10435665) |
|
$ 19.41 | |||||
| 15 | WP627843 | Ejector (Replaces: 627843) |
|
$ 75.24 | |||||
| 16 | WPW10122563 | Stripper, Ice (Replaces: W10122563) |
|
$ 85.22 | |||||
| 17 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 94.11 | |||||
| 18 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 9.95 | |||||
| 19 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 628397) |
|
Immediately | $ 98.26 | ||||
| 20 | W10001280 | Screw |
|
- | |||||
| 21 | WP488787 | Screw (Replaces: 488886) |
|
$ 9.52 | |||||
| 22 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 23 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 76.08 | |||||
| 24 | W11643622 | Assembly, Ice Maker Wire (Replaces: W10309400) |
|
$ 24.41 | |||||
| 25 | W11500948 | Bracket, Ice Maker Mounting (Replaces: 628320) |
|
Immediately | $ 28.95 | ||||
| 26 | 8201515 | Assembly, Module And Motor (Replaces: W10223929) |
|
Immediately | $ 127.48 | ||||
| 100 | 4317943 | Icemaker Assembly (complete) (Replaces: W10190952) |
|
Immediately | $ 170.06 |
