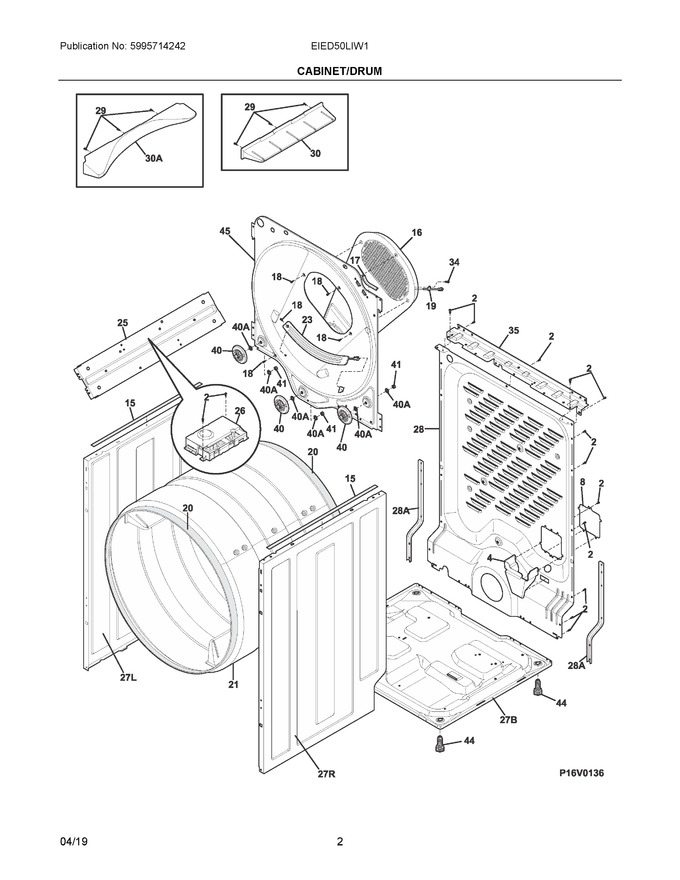

02 - Cabinet/drum
03 - Front Panel/lint Filter
04 - Controls/top Panel
05 - Motor
06 - Burner
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 4 | 134792100 | Bracket, Main, Terminal |
|
$ 29.07 | |||||
| 8 | 137578600 | Cover, Access, Terminal Block |
|
$ 12.65 | |||||
| 15 | 137031800 | Cushion, Vibration, Top Panel |
|
Immediately | $ 8.51 | ||||
| 16 | 5304508449 | Duct, Heat, Rear (Replaces: 134694030) |
|
Immediately | $ 108.44 | ||||
| 17 | 134792900 | Protector, Edge, Right Top Front, 85.0+/-1.5 |
|
$ 13.46 | |||||
| 18 | 131168200 | Screw, 10-16ab X 0.375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 19 | 134711200 | Thermistor, Inlet |
|
Immediately | $ 51.03 | ||||
| 20 | 137565300 | Seal, Felt, Drum |
|
$ 100.49 | |||||
| 21 | 137610700 | Drum, Dryer, Assmy 30", White |
|
Immediately | $ 383.44 | ||||
| 23 | 134786110 | Sensor-moisture, Assembly |
|
$ 92.14 | |||||
| 25 | 137567000 | Bracket, Mounting, Main Cntl Box |
|
- | |||||
| 26 | 809160308 | Control Board, Printed Circuit, With Housing (Replaces: 134706700) |
|
$ 292.01 | |||||
| 28 | 137560400 | Panel, Backsheet, Rear Vented |
|
- | |||||
| 29 | 131205100 | Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 30 | 137610610 | Vane, Straight, Gray |
|
Immediately | $ 65.21 | ||||
| 34 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.36 | |||||
| 35 | 134713100 | Bracket, Top Panel Mtg., Rear |
|
$ 70.82 | |||||
| 40 | 5304523155 | Roller, Wheel, Complete Asmy (Replaces: 134715900) |
|
Immediately | $ 77.99 | ||||
| 41 | 134716800 | Nut, 3/8-16 |
|
$ 2.98 | |||||
| 44 | 134158000 | Leveling Leg, Screw |
|
- | |||||
| 45 | 137556623 | Bulkhead, Panel, Rear (Replaces: 137556615) |
|
$ 311.52 | |||||
| 27B | 134690203 | Base, Dryer |
|
$ 273.58 | |||||
| 27L | 134712610 | Panel, Left Side, White |
|
$ 246.17 | |||||
| 27R | 134712710 | Panel, Right Side, White |
|
$ 197.56 | |||||
| 28A | 137029800 | Bracket, Reinforcement, Backsheet |
|
- | |||||
| 30A | 5304531882 | Vane, Mixing, Smooth (Replaces: 137610510) |
|
$ 20.24 | |||||
| 40A | 134716700 | Washer, Flat |
|
$ 2.12 | |||||
| NI | 137240500 | Brace, Side Panel |
|
- | |||||
| NIA | 137360810 | Protector, Edge, Side Brace |
|
- | |||||
| NIA | 134716200 | Retainer, Roller Wheel, Assembly |
|
$ 3.12 | |||||
| NIA | 134930800 | Wiring Harness, Moisture Sensor |
|
Immediately | $ 48.44 | ||||
| NIA | 5308027429 | Adhesive, High Temp |
|
Immediately | $ 60.25 |
