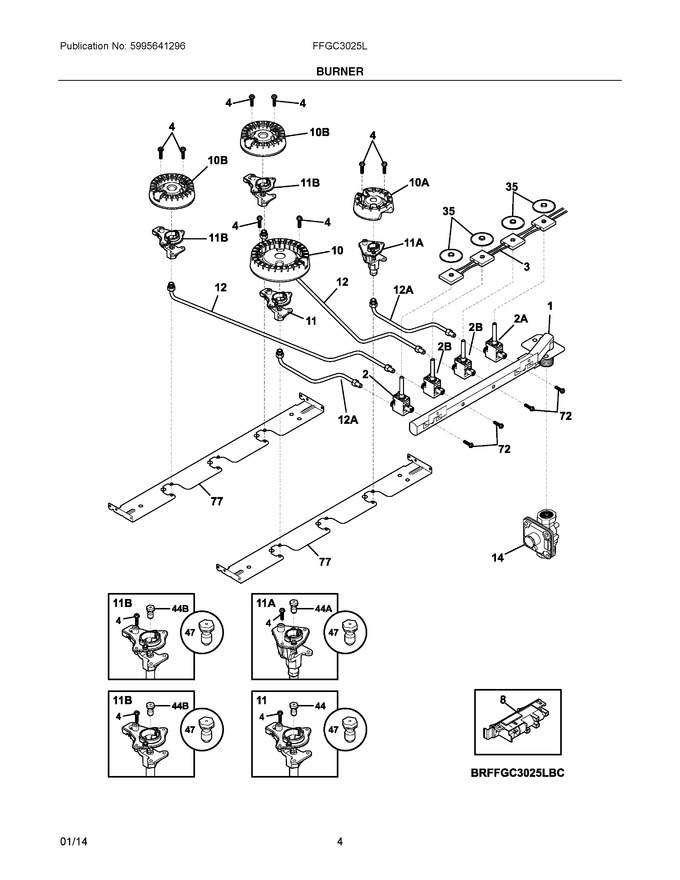

SELECT A DIAGRAM

01 - Cover Sheet


02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177020		Manifold Pipe		Appelez-nous	-
2	316271303		Valve, Top Burner, 14k				$ 131.12
3	807211201		Wiring Harness, W/igntr Switchs		Appelez-nous	-
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
8	5304505695		Module, Spark   (Replaces: 316135702)			Immediately	$ 68.16
10	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
11	316543206		Ignitor/orifice Assy., Top Burner, 14k, W/holder				$ 146.71
12	318560701		Tube, Burner, Lf & Lr, (2)				$ 37.85
14	318122707		Regulator, Pressure   (Replaces: 318122712)				$ 121.19
35	807164301		Bushing, Insulating		Appelez-nous	-
44	316527513		Orifice, Top Burner, 14k				$ 22.05
47	318565407		Conversion Kit, Lp		Appelez-nous	-
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
77	318564100		Bracket, Transverse		Appelez-nous	-
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10B	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
11A	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
11B	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
12A	318560702		Tube, Burner, Rf & Rr, (2)				$ 45.73
2A	316271305		Valve, Top Burner, 5k				$ 111.28
2B	316271301		Valve, Top Burner, 9.5k/12k				$ 152.43
44A	316527504		Orifice, Burner, 5k				$ 22.68
44B	316527500		Orifice, Burner, 9.5k				$ 21.40
NI	318199779		Wiring Harness, Ignitor				$ 129.10
NI	316519700		Screw, #8-18 X 3/8   (Replaces: 5304454881)				$ 10.02
NI	318024210		Deflector, Spark Module		Appelez-nous	-
NI	5303323140		Screw, Ground, 10-32 X 0.375		Appelez-nous	-
NI	5303311306		Screw, 8-18 X 0.375, (4)		Appelez-nous	-
