01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

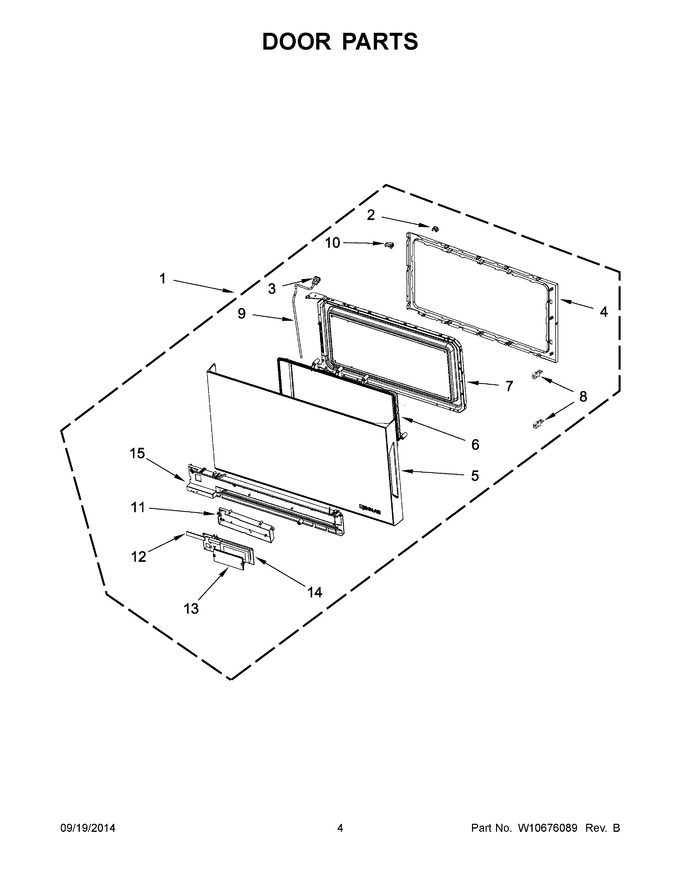

| 1 | W10666249 | Door, Complete (black) |
|
- | |||||
| 2 | W10542546 | Cover, Screw |
|
$ 76.13 | |||||
| 3 | W10478659 | Holder, Door Cable |
|
- | |||||
| 4 | W10540764 | Frame, Inner |
|
$ 85.24 | |||||
| 5 | W10594294 | Door, Outer (black) |
|
- | |||||
| 6 | W10478652 | Plate, Steam Protection |
|
- | |||||
| 7 | W10666248 | Assembly, Door Metal |
|
- | |||||
| 8 | W10740455 | Hooks, Door (Replaces: W10489272) |
|
Immediately | $ 48.17 | ||||
| 9 | W10508745 | Wire, Door Control Cable |
|
$ 24.86 | |||||
| 10 | W10643976 | Stopper, Door |
|
- | |||||
| 11 | W10478216 | Holder, Ui |
|
- | |||||
| 12 | W10509362 | Cable, Sensor |
|
- | |||||
| 13 | W10540731 | Lens |
|
- | |||||
| 14 | WPW10568426 | Control, Ui (Replaces: W10568426) |
|
$ 215.19 | |||||
| 15 | W10478222 | Cover, Ui |
|
- | |||||
| 1A | W10666250 | Door, Complete (stainless) |
|
- | |||||
| 5A | W10594301 | Door, Outer (stainless) |
|
- |
