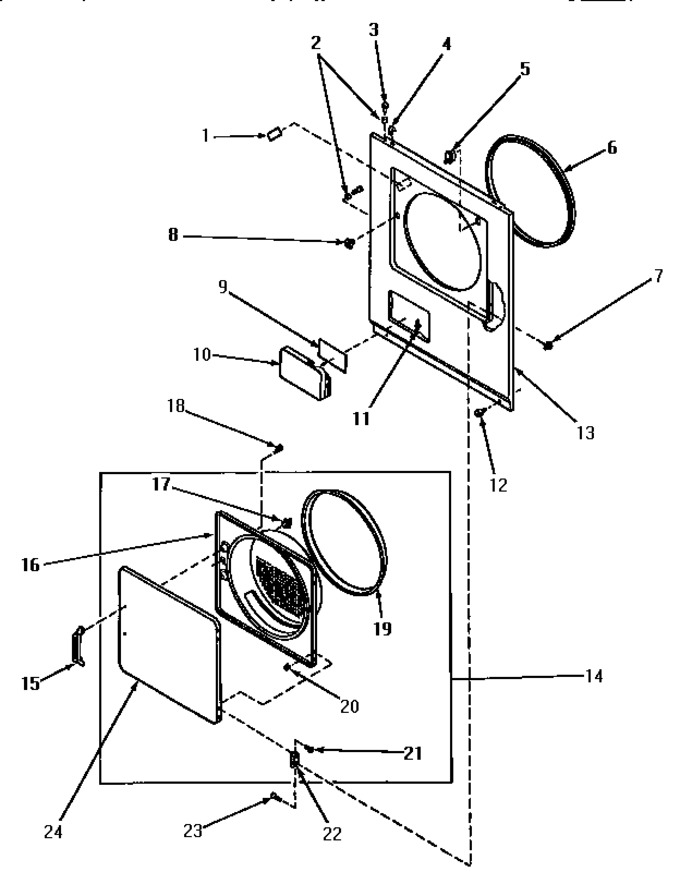

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 58854 | Repl By 500281 |
|
- | |||||
| 2 | 56079 | Locater, Panel |
|
Immediately | $ 6.95 | ||||
| 3 | 39733 | Screw, Tapping (Replaces: 32671) |
|
$ 6.95 | |||||
| 4 | WP22001650 | Hold-down Clip (Replaces: 28835) |
|
Immediately | $ 7.34 | ||||
| 5 | W10169313 | Door Switch (Replaces: 56052) |
|
Immediately | $ 29.18 | ||||
| 6 | Y61380 | Seal,front Panel |
|
- | |||||
| 7 | Sub. To 807429P | Nut K (Replaces: 51236) |
|
- | |||||
| 8 | LA-1003 | Catch, Door (Replaces: 54660) |
|
Immediately | $ 24.51 | ||||
| 9 | 56427 | Sticker |
|
- | |||||
| 10 | 60795L | Door,access |
|
- | |||||
| 10 | 60795H | Door,access |
|
- | |||||
| 10 | 60795W | Door,access |
|
- | |||||
| 11 | 56534 | Barrel,support |
|
- | |||||
| 12 | WP27001200 | Screw (Replaces: 58637) |
|
$ 6.91 | |||||
| 13 | 62421H | Panel,front-gas |
|
- | |||||
| 13 | 62421L | Panel, Front |
|
- | |||||
| 13 | 62421W | Panel, Front |
|
- | |||||
| 14 | 62151W | Assy,door |
|
- | |||||
| 14 | 62151H | Assy,door |
|
- | |||||
| 14 | 62151L | Assy,door |
|
- | |||||
| 15 | 54068P | Pull,door |
|
- | |||||
| 16 | 62152W | Liner,door |
|
- | |||||
| 16 | 62152L | Liner,door |
|
- | |||||
| 16 | 62152H | Inner Door Panel, Harvest Gold |
|
- | |||||
| 17 | LA-1003 | Strike, Door (metal) (Replaces: 54661) |
|
Immediately | $ 24.51 | ||||
| 18 | 52150 | Screw, Thermostat |
|
- | |||||
| 19 | 61379P | Door Seal (Replaces: 61379) |
|
$ 39.77 | |||||
| 20 | 23407 | Nut,speed-8a Tinn C15 |
|
- | |||||
| 21 | Sub. To D512973 | Screw, 8b-16x5/8 Tap (Replaces: 52864) |
|
- | |||||
| 22 | 56045P | Kit,hinge |
|
- | |||||
| 23 | 22649 | Screw,8-32 X 13/32 Fl |
|
- | |||||
| 24 | 62153L | Door |
|
- | |||||
| 24 | 62153H | Door (gold) |
|
- | |||||
| 24 | 62153W | Panel Outer Door |
|
- |
