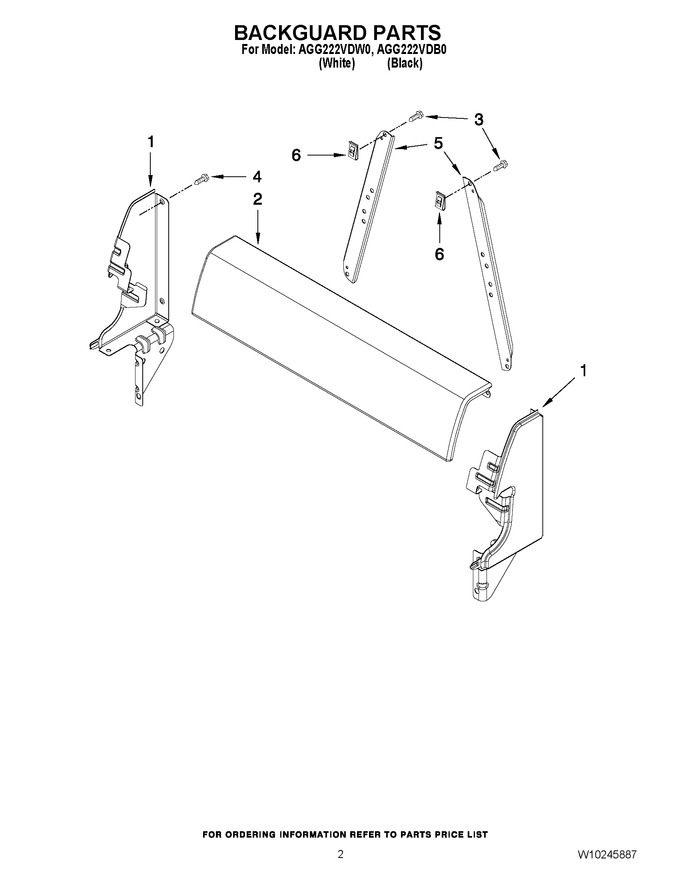

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10144828 | Endcap (lh White) |
|
- | |||||
| 1 | W10212837 | Endcap (rh Black) |
|
- | |||||
| 1 | W10212836 | Endcap (lh Black) |
|
- | |||||
| 1 | W10144829 | Endcap (rh White) |
|
- | |||||
| 2 | W10208451 | Panel, Backguard (white) |
|
- | |||||
| 2 | W10208572 | Panel, Backguard (black) |
|
- | |||||
| 3 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 | |||||
| 4 | WP3400805 | Screw (Replaces: 98015526) |
|
$ 6.47 | |||||
| 5 | W10145101 | Support, Backguard |
|
- | |||||
| 6 | 98009179 | U-nut |
|
$ 12.02 |
