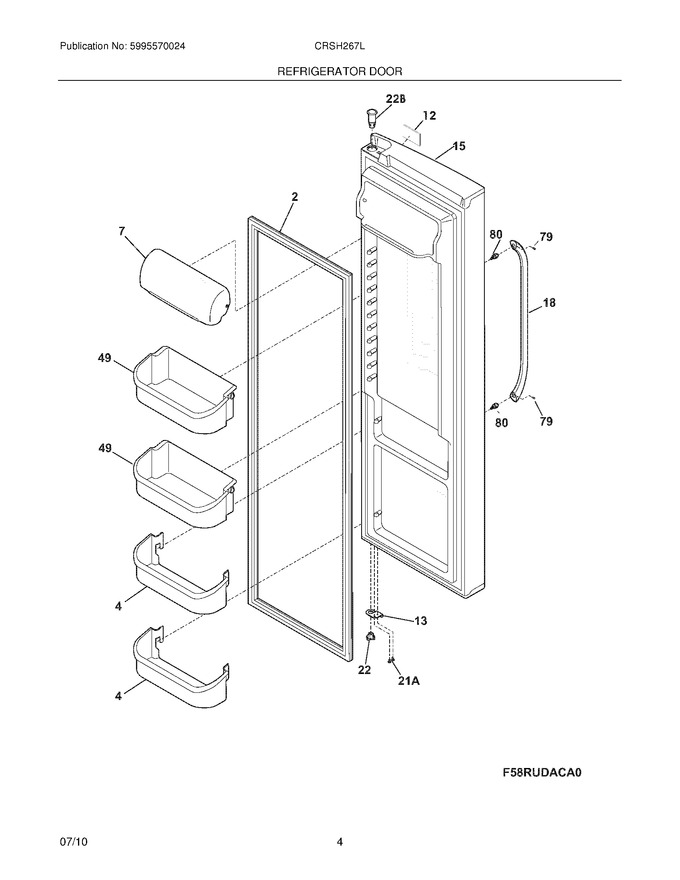

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786005		Refrigerator Door Gasket, Grey, Magnetic			Immediately	$ 225.62
4	240323001		Bin-door,pseudo ,bottom			Immediately	$ 42.81
7	240326203		Door-dairy				$ 40.37
12	242013601		Label-nameplate		Appelez-nous	-
13	241942603		Door Stop,black ,ref				$ 20.56
15	242038844		Door-refr,black (smooth) ,complete Assy				$ 342.28
18	241930103		Handle-door,black				$ 213.98
22	241990301		Bearing-hinge,gray				$ 7.09
49	240356415		Bin-door,gallon		Appelez-nous	-
79	218755405		Screw-set,10-32 X 0.650   (Replaces: 218755408)			Immediately	$ 20.56
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	241760404		Bearing,hinge ,top				$ 12.76
NI	241601002		Wrench,allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
