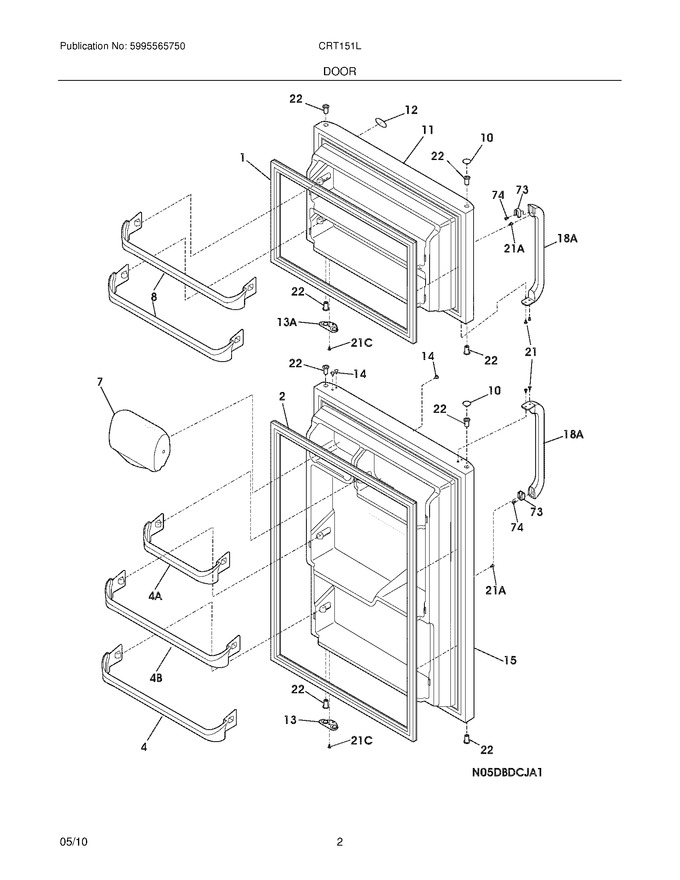

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241872501 | Gasket-frzr Door,white ,magnetic |
|
Immediately | $ 134.19 | ||||
| 2 | 241872502 | Gasket-refr Door,white ,magnetic |
|
Immediately | $ 162.09 | ||||
| 4 | 240535101 | Rack-door |
|
Immediately | $ 28.57 | ||||
| 7 | 240337701 | Door-dairy,w/o Graphics ,white |
|
Immediately | $ 34.02 | ||||
| 8 | 240535001 | Rack-door |
|
Immediately | $ 48.20 | ||||
| 10 | 240381301 | Plug-button,white ,hinge Brg Hole ,(2) |
|
Immediately | $ 18.95 | ||||
| 11 | 240415401 | Door,frzr ,white |
|
$ 399.11 | |||||
| 12 | 242013601 | Label-nameplate |
|
- | |||||
| 13 | 240312421 | Door Stop,white ,ref (Replaces: 240312403) |
|
$ 15.17 | |||||
| 14 | 240494001 | Plug-button,white |
|
Immediately | $ 18.20 | ||||
| 15 | 240415501 | Door,refr ,white |
|
$ 312.42 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507146 | Bearing-hinge,natural Color (Replaces: 240527101) |
|
Immediately | $ 7.59 | ||||
| 73 | 218396701 | Block-handle Mtg,dovetail |
|
- | |||||
| 74 | 215503203 | Screw,cr Pan Hd ,10-16 X 0.500 |
|
Immediately | $ 7.09 | ||||
| 13A | 240312414 | Door Stop,white ,frzr |
|
$ 19.13 | |||||
| 18A | 218428101 | Handle-door, White, W/block & Screw |
|
Immediately | $ 22.73 | ||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 4A | 240535301 | Rack-door,12.03`` |
|
Immediately | $ 41.12 | ||||
| 4B | 240535201 | Rack-door |
|
Immediately | $ 30.34 |
