SELECT A DIAGRAM

01 - Cover

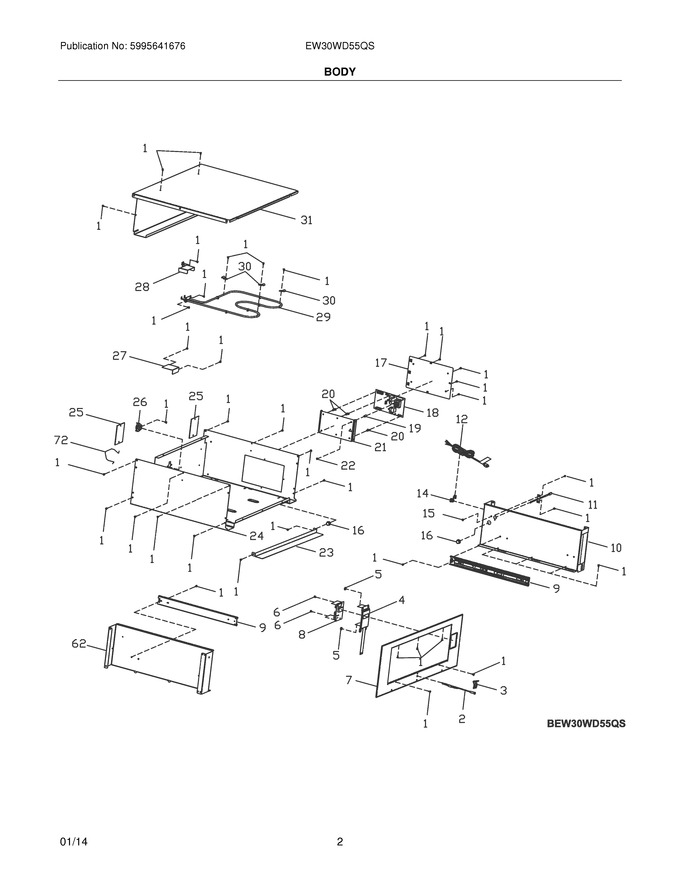

03 - Body


05 - Drawer


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	305309702		Screw,phil ,4.2 X 9.5 ,(55)		Appelez-nous	-
3	305611500		Clip,light		Appelez-nous	-
5	5303323000		Nut,keps ,8-32 ,(4)		Appelez-nous	-
6	5304468081		Screw,6-32 X 3/8`` ,(4)				$ 9.92
7	318387600		Control Panel,assembly ,front				$ 317.52
9	318248410		Channel,drawer Slide ,outer				$ 104.90
10	807221601		Shield,side Panel ,rh		Appelez-nous	-
14	305532205		Bushing,strain Relief		Appelez-nous	-
15	5303323140		Screw,ground   (Replaces: 305452800)		Appelez-nous	-
16	305494200		Bushing,cable		Appelez-nous	-
17	318310108		Panel,service		Appelez-nous	-
19	318293702		Spacer,control ,(2)				$ 16.22
20	305560900		Clip,control ,(4)		Appelez-nous	-
21	318310701		Bracket,mounting				$ 80.80
22	5304400427		Screw,6-20 X 1/2		Appelez-nous	-
23	318378603		Shield,wire		Appelez-nous	-
24	807319601		Wrapper,drawer		Appelez-nous	-
25	318388000		Bumper,absorber ,felt ,(2)		Appelez-nous	-
27	318399000		Shield,wire		Appelez-nous	-
28	807319701		Shield,element ,terminals		Appelez-nous	-
30	316095800		Clip,hold Down ,(3)				$ 9.93
31	318281508		Wrapper,upper		Appelez-nous	-
62	807221801		Shield,side Panel ,lh		Appelez-nous	-
72	202855101		Holder,cable				$ 1.42
F11	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F12	318144005		Cord,service				$ 23.99
F18	316517800		Board,control ,display Realy				$ 252.17
F2	318250408		Light,indicator ,red		Appelez-nous	-
F26	318005114		Thermostat,safety				$ 46.10
F29	318255301		Element,warmer Drawer				$ 105.42
F4	318388101		Bracket Assembly,display Board ,w/overlay				$ 202.00
F8	316517900		Board,display				$ 264.83
FNI	318199788		Wiring Harness,main		Appelez-nous	-
FNI	318199765		Wiring Harness,communication		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
