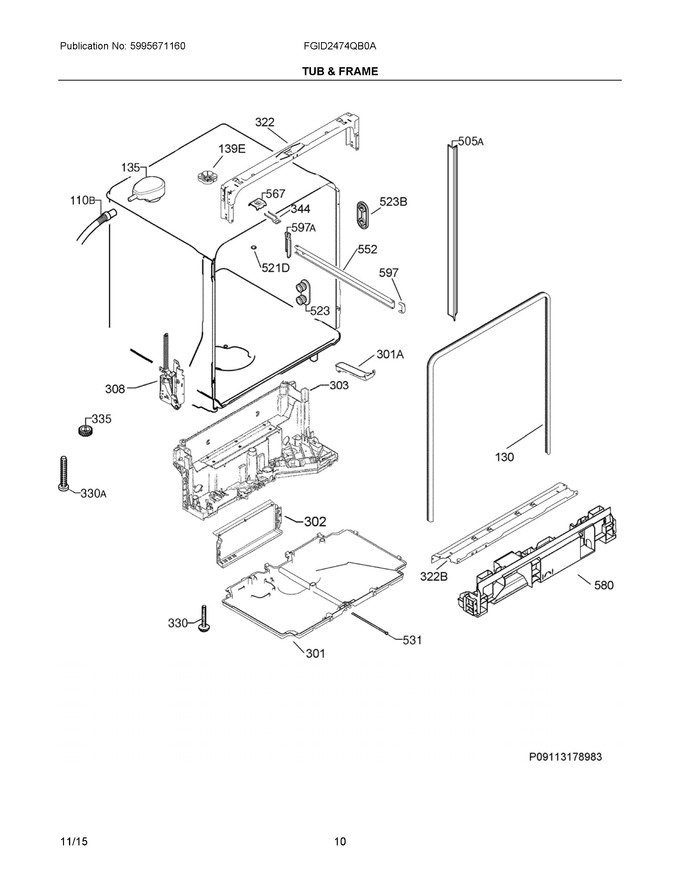

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
130	117158011		Seal, Door			Immediately	$ 50.61
135	117145823		Container, Drying, Activator				$ 92.61
301	807104203		Tray, Bottom				$ 204.17
302	A00075002		Cover, Electronics   (Replaces: A00075001)				$ 98.33
303	807104103		Base, Lower, Rear				$ 227.85
308	405517992		Hinge Assembly, Kit, Rh And Lh				$ 284.36
322	A00166805		Crossbar, Front, Black, Top				$ 212.74
330	117368700		Foot, Adjustable, Front				$ 111.83
335	152714200		Cog, Wheel				$ 58.12
344	152234405		Latch				$ 119.17
523	405526079		Roller Assembly, Kit, Tub				$ 122.00
531	A00021003		Screw, Foot Adjusting, Central				$ 138.56
552	A00212701		Rail, Upper Rack				$ 128.51
567	152323603		Bracket, Latch				$ 57.56
580	807104303		Cover, Bottom, Front				$ 40.50
597	152047941		Stop, Rack Rail, Dark Grey, Front			Immediately	$ 18.43
110B	117281421		Pipe, Drying, Activator				$ 51.50
139E	807240301		Nut, Spray Arm, Upper			Immediately	$ 63.79
301A	405513837		Overflow Hose, Kit				$ 101.35
322B	117493700		Cross Piece, Front, Bottom		Appelez-nous	-
330A	117363200		Foot, Adjustable, Central				$ 104.18
505A	808470401		Trim, Side, L=648mm			Immediately	$ 35.53
521D	152657610		Plug, Latch Hole				$ 51.74
523B	152122010		Holder, Roller, Stiffening				$ 58.88
597A	646123406		Stop, Rack Rail, Dark Grey, Rear				$ 82.93
NI	117427700		Clip, Rivet				$ 58.82
NI	328655280		Built-in, Kit			Immediately	$ 46.22
NI	405530687		Screw, Holder, (8), & Roller				$ 132.40
