| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
Y00000000 |
|
See Note Base -- (see Cabinet Page) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
500821 |
|
Bracket, Mounting |
|
Appelez-nous
|
- |
|
|
|
| 3 |
WP3390631 |
 |
Screw, 10b-16 X .34 (Replaces: 501668) |
|
|
|
$ 7.04 |
|
|
| 4 |
58804A |
 |
Booster & Holding Coil |
|
|
Immediately |
$ 28.02 |
|
|
| 5 |
Y56229 |
|
Valve,elbow Shut-off |
|
Appelez-nous
|
- |
|
|
|
| 6 |
60641 |
|
Assy,wire Harness-gas |
|
Appelez-nous
|
- |
|
|
|
| 7 |
500647 |
|
Pipe, Lead-in |
|
Appelez-nous
|
- |
|
|
|
| 8 |
Y00000000 |
|
See Note Cabinet -- (see Cabinet Page) |
|
Appelez-nous
|
- |
|
|
|
| 9 |
Sub. To D510151W |
|
Screw, 6b-20x5/16 (Replaces: 51782) |
|
Appelez-nous
|
- |
|
|
|
| 10 |
WP37001308 |
 |
Igniter & Bracket Assembly (Replaces: 60868) |
|
|
Immediately |
$ 67.52 |
|
|
| 11 |
WP3177991 |
 |
Screw, 8b-18 X 1/4 He (Replaces: 23222) |
|
|
Immediately |
$ 6.47 |
|
|
| 12 |
WP338906 |
 |
Sensor, Flame (Replaces: Y56231) |
|
|
Immediately |
$ 46.72 |
|
|
| 13 |
Y00000000 |
|
See Note Burner Housing -- (see Heater Box Assembly Original Page) |
|
Appelez-nous
|
- |
|
|
|
| 14 |
Y56234 |
|
Assembly, Burner |
|
Appelez-nous
|
- |
|
|
|
| 15 |
279834 |
 |
Coil, Secondary (Replaces: 58804B) |
|
|
Immediately |
$ 29.57 |
|
|
| 16 |
58804 |
|
Assy,valve-gas-single- |
|
Appelez-nous
|
- |
|
|
|
| 17 |
WP489128 |
 |
Screw, 8t-32x3/8 He (Replaces: 56124) |
|
|
|
$ 9.79 |
|
|
| NI |
402P3 |
 |
Kit,conversion-ng |
|
|
|
$ 56.93 |
|
|
| NI |
61504 |
|
Conversion Plate |
|
Appelez-nous
|
- |
|
|
|
| NI |
60517 |
|
Valve Converted To Lp Gas Stic |
|
Appelez-nous
|
- |
|
|
|
| NI |
COMM PART |
|
Screw,vent (Replaces: 58768) |
|
Appelez-nous
|
- |
|
|
|
| NI |
COMM PART |
|
Plug,block Open (Replaces: 58754) |
|
Appelez-nous
|
- |
|
|
|
| NI |
58719 |
|
Orifice,screw |
|
Appelez-nous
|
- |
|
|
|
| NI |
60521 |
|
Sticker,ng Or Mixed Gas |
|
Appelez-nous
|
- |
|
|
|
| NI |
60516 |
|
Sticker,valve Converted |
|
Appelez-nous
|
- |
|
|
|
| NI |
60520 |
|
Sticker,lp Gas |
|
Appelez-nous
|
- |
|
|
|
| NI |
58755 |
|
Orifice,lp |
|
Appelez-nous
|
- |
|
|
|
| NI |
61505 |
|
Conversion Plate |
|
Appelez-nous
|
- |
|
|
|
| NI |
401P3 |
 |
Kit, Conversion-lp |
|
|
Immediately |
$ 51.40 |
|
|

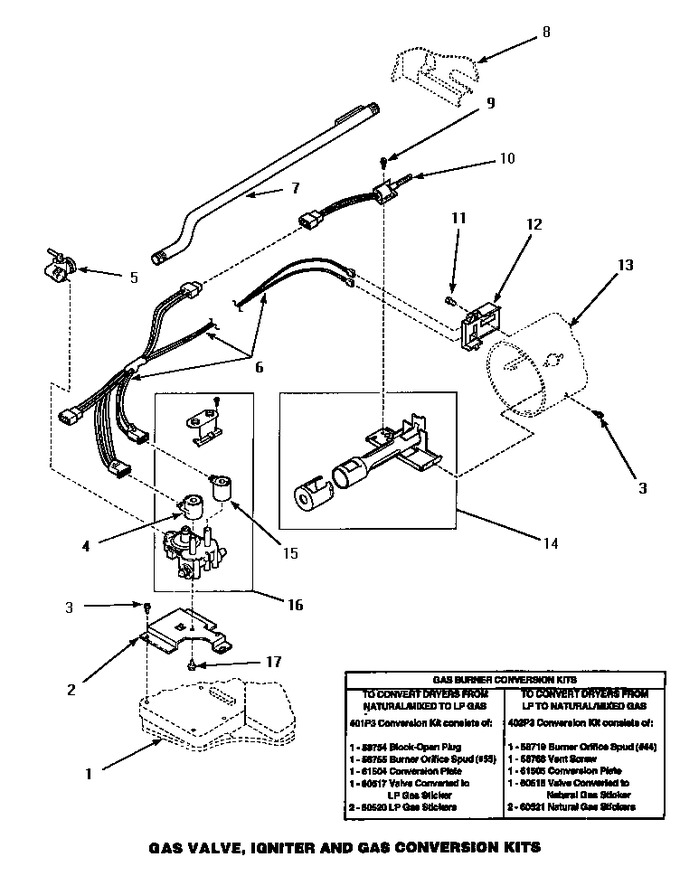

View Diagram in Separate Window
