SELECT A DIAGRAM

01 - Cover Sheet

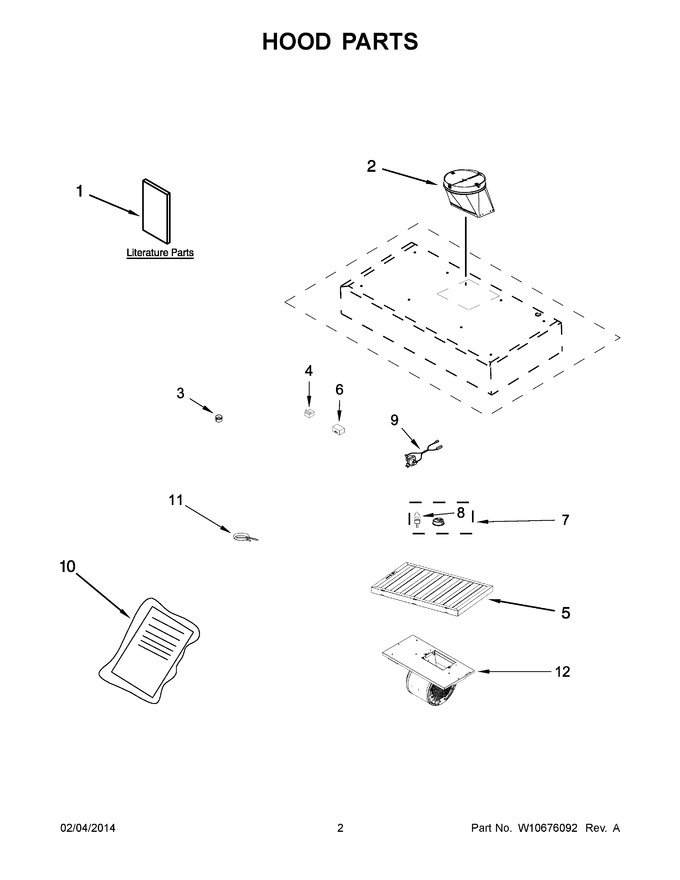

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10635570		Guide, Use & Care		Appelez-nous	-
1	W10649288		Instructions, Extension Panel Kit		Appelez-nous	-
2	W11156393		Assembly, Damper   (Replaces: W10351926)				$ 183.67
3	WPW10294009		Knob   (Replaces: W10294009)				$ 61.90
4	W10293968		Switch, Light				$ 109.85
5	W10351892		Filter, Grease				$ 231.12
6	W10293967		Switch, Fan				$ 117.15
7	WPW10562734		Assembly, Light Puck   (Replaces: W10562734)			Immediately	$ 96.56
8	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 24.94
9	W10651064		Switch, Thermo				$ 190.76
10	W10651062		Hardware, Install		Appelez-nous	-
11	W10427011		Filter, Noise		Appelez-nous	-
12	N/P		Not Included With Unit, Service Only Replacement Motor ( See Accessories )		Appelez-nous	-
NI	N/P		Accessory Parts, Blower Motor System ( 1 System Is Required ) 600 Cfm In-line Blower Motor System Order Model Number Uxi		Appelez-nous	-
NI	W11636054		Accessory Parts, Blower Motor System ( Service Only ) 1200 Cfm In-line Blower Motor System Order Model Number Uxi1200dys   (Replaces: W10294006)				$ 709.36
NI	W11499036		Accessory Parts, Blower Motor System ( Service Only ) 10`` (25.4 Cm) Round Make-up Air System Order Part Number W10446917   (Replaces: W10294026)				$ 749.30

    View Diagram in Separate Window       Print Part List
