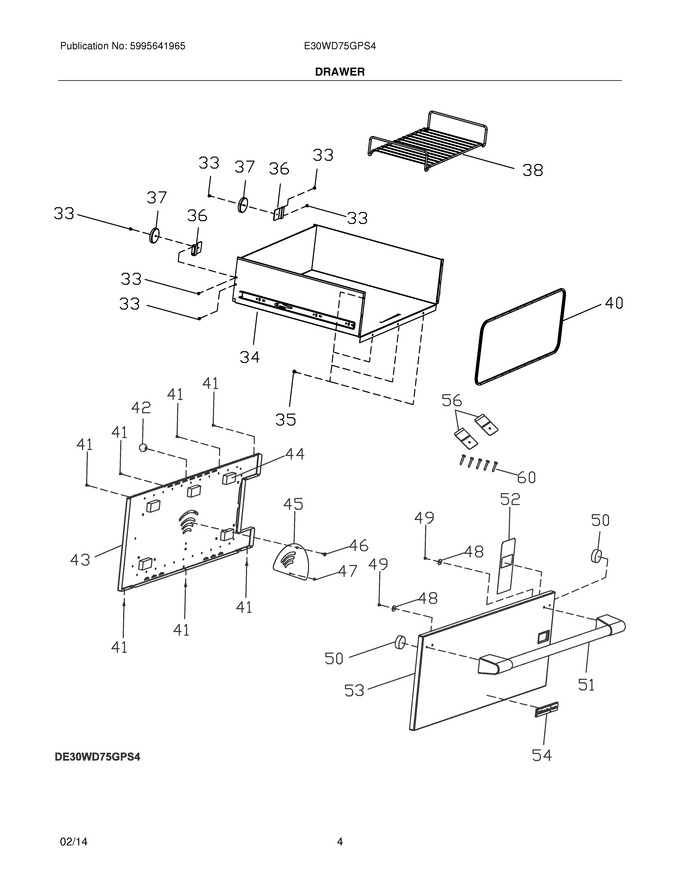

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	305338504		Screw,m4 X 5 Mm ,(6)		Appelez-nous	-
34	808248901		Drawer Assembly,w/glides				$ 455.81
35	5304415832		Screw,8-18 X 13/32`` ,(7)		Appelez-nous	-
36	808499901		Bracket,magnet Mtg. ,(2)		Appelez-nous	-
37	318373201		Magnet,drawer ,(2)				$ 5.99
38	807328301		Rack,warmer Drawer   (Replaces: 318345601)				$ 87.21
40	318254408		Gasket,warmer Drawer				$ 49.40
41	08016432		Screw,truss Head ,8-18 X 3/8`` ,(7)		Appelez-nous	-
42	318251100		Handle,control ,humidity		Appelez-nous	-
43	807356701		Liner,drawer Panel ,inner		Appelez-nous	-
44	807273501		Spacer,door ,foam ,(5)		Appelez-nous	-
45	807393601		Panel,humidity Cntl		Appelez-nous	-
46	5304443138		Screw,10-24 X 3/8		Appelez-nous	-
47	305616000		Rivet,humidity Panel		Appelez-nous	-
48	305338306		Washer,flat ,(2)		Appelez-nous	-
49	305615701		Screw,handle Mtg. ,10-32 X 1/2`` ,(2)		Appelez-nous	-
50	318339700		Bumper,base ,(2)		Appelez-nous	-
51	318392423		Handle,door				$ 316.10
52	318394100		Display,window		Appelez-nous	-
53	807446301		Panel,drawer ,stainless ,outer				$ 261.08
54	241603101		Label,nameplate ,elux/icon				$ 80.96
56	318247403		Bracket,wall ,(2)		Appelez-nous	-
60	305376110		Screw,st4.8 X 31.75 ,(4)		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
