01 - Cover Sheet


02 - Control Panel


03 - Main Top/surface Units


04 - Wiring Diagram

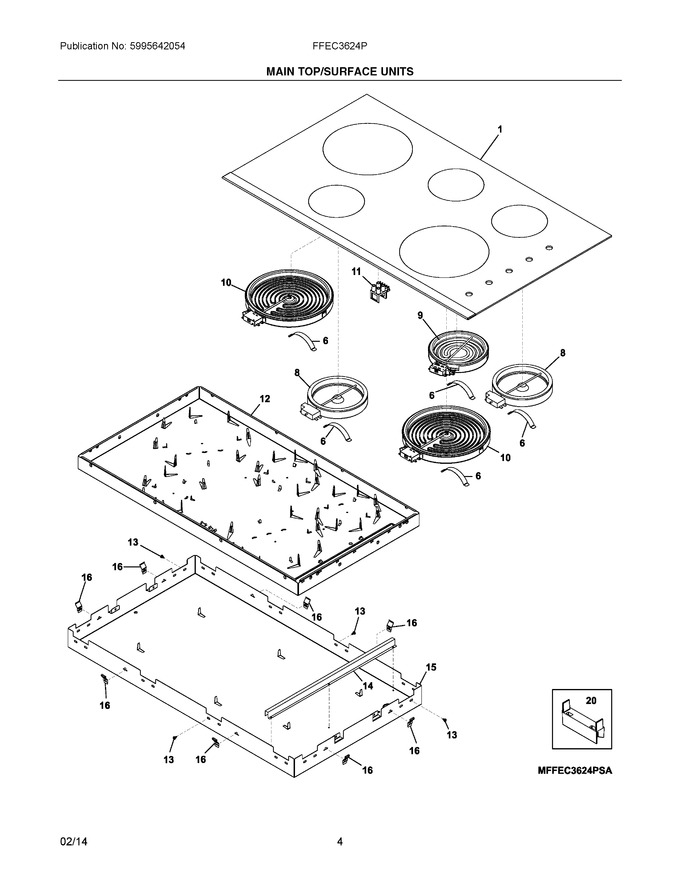

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	305543545		Maintop Assembly, Glass, White		Appelez-nous	-
6	387372900		Spring, Surface Element				$ 15.17
8	140283001026		Element, Surface, 6", 1200w   (Replaces: 374063522)			Immediately	$ 73.17
9	305440414		Element, Warm Zone, 6", 100w				$ 196.52
10	305440417		Element, Surface, 9", 2500w			Immediately	$ 302.79
11	387812005		Light Assembly, Indicator, Hot Surface				$ 12.76
12	808431501		Box, Burner, Inner		Appelez-nous	-
13	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
14	387683500		Support, Burner Box		Appelez-nous	-
15	387811900		Box, Outer		Appelez-nous	-
16	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
20	387627600		Spacer, Burner Box, Plastic				$ 12.71
NI	131202300		Screw, (4)   (Replaces: 305376102)			Immediately	$ 13.46
NI	387683300		Bracket, Surface Element			Immediately	$ 13.42
NI	305376101		Screw, Bracket, Surface Element		Appelez-nous	-
NI	808594501		Box & Wires Assy		Appelez-nous	-
NI	808550101		Harness, Wiring, Main		Appelez-nous	-
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NI	387627700		Bracket, Retainer, Cooktop				$ 24.10
NI	305309606		Screw, (2)				$ 11.34
NIA	305351200		Rivet, 3, 2 X 6		Appelez-nous	-
