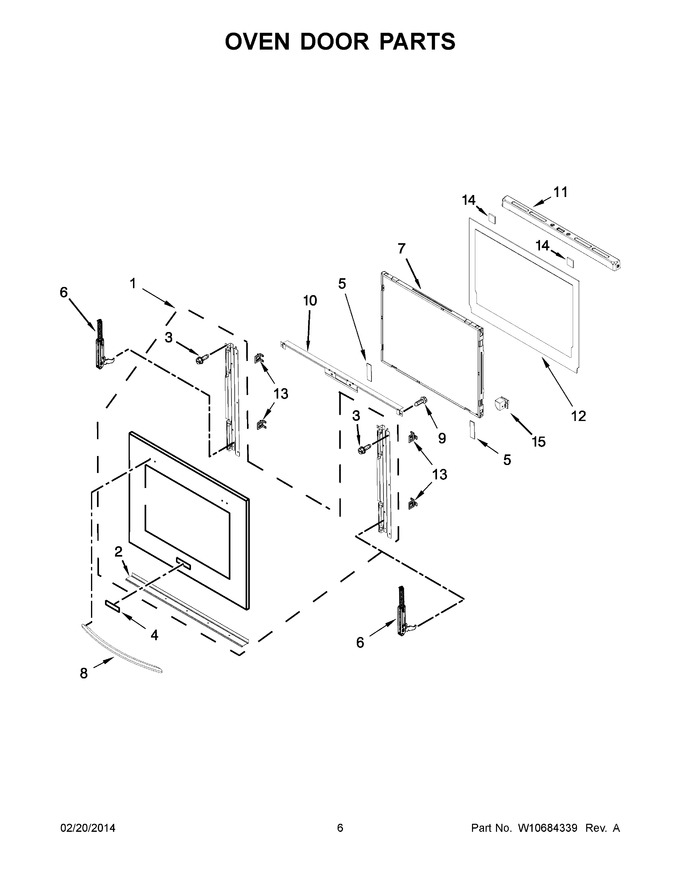

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10587565		Assembly, Door Glass (white)		Appelez-nous	-
1	W10587563		Assembly, Door Glass (stainless)		Appelez-nous	-
1	W10587564		Assembly, Door Glass (black)		Appelez-nous	-
2	W10479069		Bracket, Lower Door		Appelez-nous	-
3	WPY706189		Screw   (Replaces: 7101P653-60)			Immediately	$ 6.47
4	WPW10243391		Badge (grey)   (Replaces: W10243391)				$ 49.98
4	WPW10243392		Badge (black)   (Replaces: W10243392)				$ 63.17
4	WPW10243393		Badge (white)   (Replaces: W10243393)				$ 59.99
5	W10840861		Spacer   (Replaces: W10517440)				$ 8.89
6	W11642291		Hinge, Door   (Replaces: W10419878)				$ 71.35
7	W10347599		Assembly, Window Pack				$ 212.42
8	WPW10437675		Handle, Door (stainless)   (Replaces: W10437675)				$ 173.66
8	W10284920		Handle, Door (white)		Appelez-nous	-
8	W10284919		Handle, Door (black)		Appelez-nous	-
9	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 15.94
10	W10459352		Bracket, Glass				$ 145.30
11	W10416258		Vent, Door Top		Appelez-nous	-
12	WPW10335921		Liner, Door   (Replaces: W10335921)				$ 354.53
13	WPW10549747		Clip, Spring   (Replaces: W10549747)				$ 17.92
14	WPW10517428		Spacer, Vent   (Replaces: W10517428)			Immediately	$ 10.67
15	WPW10581826		Bracket, Door (right)   (Replaces: W10581826)				$ 57.11
15	WPW10581831		Bracket, Door (left)   (Replaces: W10581831)				$ 31.89
