View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Doors
05 - Cabinet
07 - Shelves
09 - System
10 - Wiring Schematic
11 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

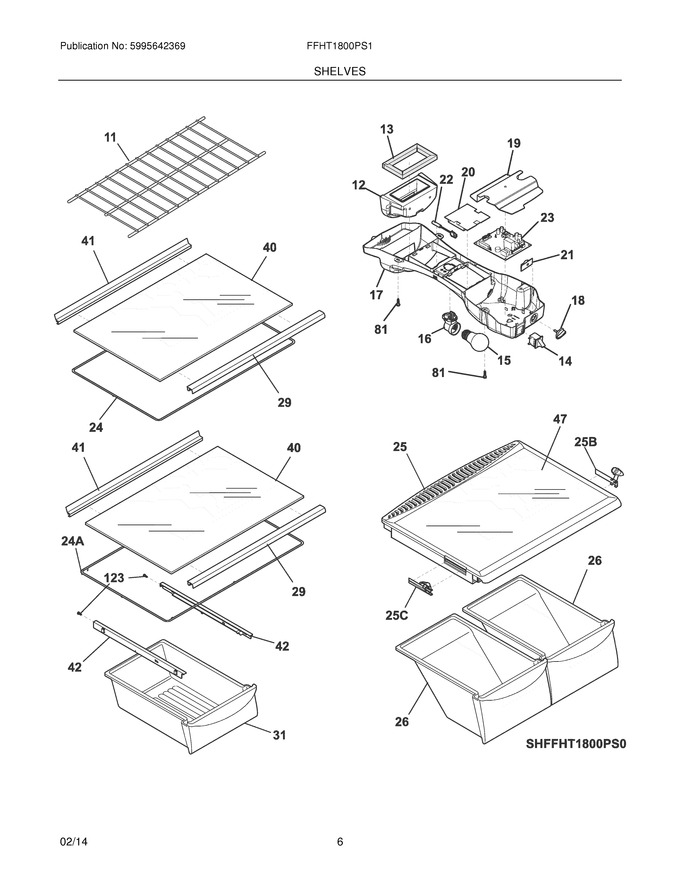

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 240358008 | Shelf, Freezer |
|
$ 91.80 | |||||
| 12 | 242228801 | Diffuser,air ,control Box |
|
$ 34.89 | |||||
| 13 | 242240601 | Gasket,air Diffuser |
|
$ 20.84 | |||||
| 14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 17 | 242216701 | Control Box |
|
$ 232.82 | |||||
| 18 | 242217001 | Knob,cold Control |
|
$ 226.00 | |||||
| 19 | 242216901 | Cover,control Housing |
|
$ 0.71 | |||||
| 20 | 242228701 | Shield,heat |
|
$ 17.25 | |||||
| 24 | 240372409 | Frame,sliding Shelf ,full Width |
|
$ 127.08 | |||||
| 25 | 240364787 | Cover-crisper Pan |
|
Immediately | $ 120.98 | ||||
| 26 | 240337103 | Pan-crisper,clear ,(2) ,no Graphics |
|
Immediately | $ 148.35 | ||||
| 29 | 240357704 | Trim-shelf,front |
|
Immediately | $ 66.25 | ||||
| 31 | 240530811 | Pan-meat,w/o Graphics ,clear |
|
Immediately | $ 135.77 | ||||
| 40 | 240350620 | Glass-shelf,23.78`` X 16.34`` |
|
Immediately | $ 140.90 | ||||
| 41 | 240561502 | Trim-shelf,rear |
|
Immediately | $ 71.59 | ||||
| 42 | 240530601 | Track,meat Pan Hanger ,lh |
|
Immediately | $ 65.98 | ||||
| 42 | 240530701 | Track,meat Pan Hanger ,rh |
|
Immediately | $ 65.98 | ||||
| 47 | 240350608 | Insert-pan Cover,23.82`` X 15.50`` ,glass |
|
Immediately | $ 45.50 | ||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 123 | 215005101 | Screw,hanger/rlr Mtg ,8-10 X 7/16 |
|
$ 14.89 | |||||
| 24A | 240372410 | Frame,sliding Shelf ,full Width ,w/hanger Tabs |
|
$ 273.39 | |||||
| 25B | 241613501 | Control-humidity,rh |
|
Immediately | $ 12.05 | ||||
| 25C | 241613502 | Control-humidity,lh |
|
$ 47.78 | |||||
| F16 | 241559801 | Socket,light (Replaces: 242081801) |
|
$ 72.68 | |||||
| F21 | 5304501856 | Board,user Interface ,potentiometer (Replaces: 242231601) |
|
Immediately | $ 766.96 | ||||
| F22 | 240597220 | Sensor,temperature ,10k ,ntc (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| F23 | 242216801 | Board,main Control ,erf1500 |
|
- | |||||
| FNI | 242213801 | Harness Assembly,wiring ,control Box |
|
$ 79.62 | |||||
| NI | 241705801 | Spacer-shelf |
|
$ 7.09 | |||||
| NI | 807407004 | Label,energy Guide |
|
- |
