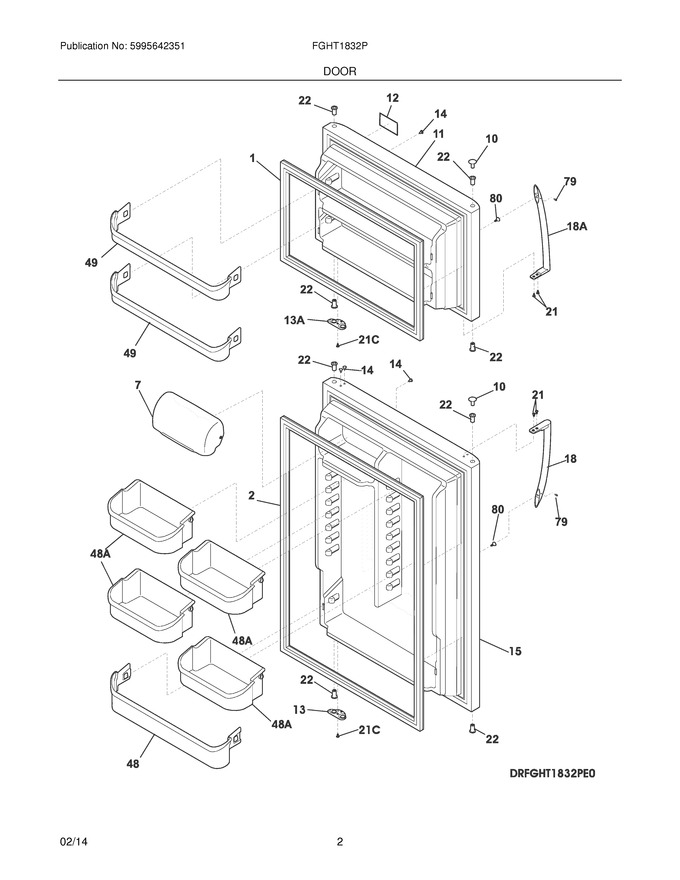

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193203		Gasket-frzr Door,white ,magnetic			Immediately	$ 197.62
2	242193206		Gasket-refr Door,white ,magnetic			Immediately	$ 197.62
7	240338313		Door,dairy ,clear			Immediately	$ 80.80
10	240381301		Plug-button,white ,hinge Brg Hole ,(2)			Immediately	$ 18.95
11	240437418		Door-frzr,white ,complete Assy   (Replaces: 240437407)				$ 513.90
12	242015201		Label-nameplate			Immediately	$ 6.90
13	240312421		Door Stop,white ,ref   (Replaces: 240312403)				$ 15.17
14	240494001		Plug-button,white ,cab Liner Holes			Immediately	$ 18.20
15	240438622		Door-refr,white ,complete Assy				$ 237.33
18	5303918823		Handle-door,white ,refr-rh/frzr-lh   (Replaces: 241977503)			Immediately	$ 52.33
21	240383407		Screw,truss Hd Quad ,no.10-16 X .500 ,white				$ 12.76
22	5304507146		Bearing-hinge,natural Color   (Replaces: 240527101)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240495805		Bin-door,pseudo ,frzr				$ 50.94
79	218755402		Screw-set,10-32 X .500 In			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	240312414		Door Stop,white ,frzr				$ 19.13
18A	5303918823		Handle-door,white ,refr-lh/frzr-rh   (Replaces: 241977504)			Immediately	$ 52.33
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
48A	241808201		Bin-door,gallon			Immediately	$ 79.97
NI	241601001		Wrench,allen		Appelez-nous	-
