View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Upper Oven
07 - Lower Oven
09 - Doors
10 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318577800 | Box,fan Service |
|
- | |||||
| 21 | 139028000 | Bracket,mounting |
|
$ 63.00 | |||||
| 77 | 316247900 | Spacer,power Board |
|
$ 44.65 | |||||
| 2A | 139017901 | Cover,oven Top |
|
$ 127.56 | |||||
| 2B | 139017801 | Cover,control Access |
|
$ 59.16 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||

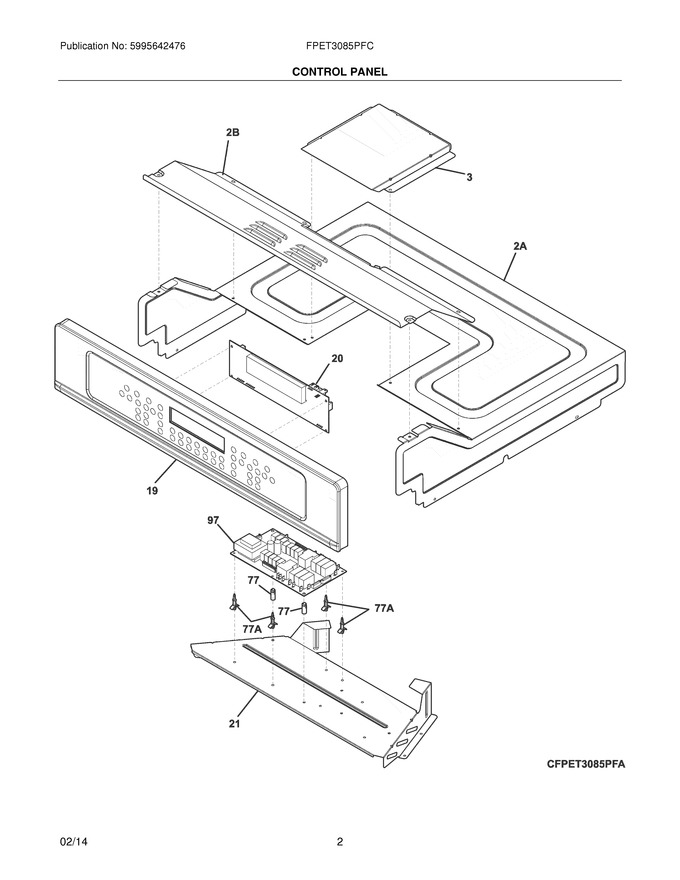

| F19 | 139038819 | Control Panel Assembly,steel/glass ,stainless,w/touch Pad |
|
$ 495.37 | |||||
| F20 | 316443882 | Control,electronic ,es610w11 ,dual Oven |
|
$ 154.89 | |||||
| F97 | 316443936 | Board,relay ,dual Oven |
|
$ 480.56 | |||||
| FNI | 807037601 | Harness,wiring ,control Panel |
|
- | |||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 318165800 | Spacer |
|
$ 17.72 | |||||
| NI | 5304401490 | Screw,6-18 X 1 ,(2) |
|
- | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 5303311306 | Screw,8-18 X 0.375 ,(4) |
|
- |
