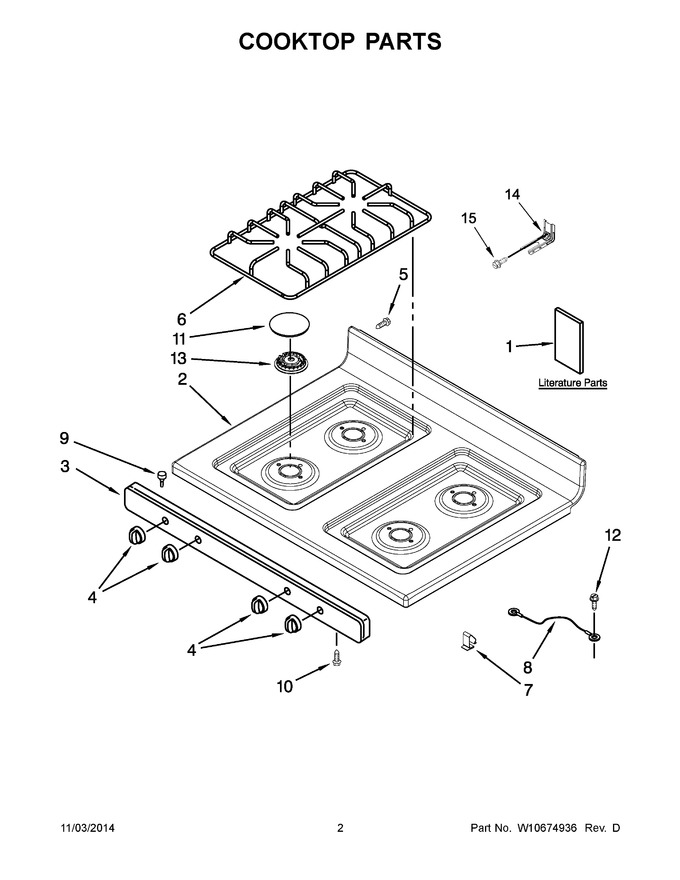

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10620415		Instructions, Installation		Appelez-nous	-
2	WPW10535684		Cooktop (white)   (Replaces: W10535684)				$ 286.53
3	W10620545		Panel, Manifold (white)		Appelez-nous	-
4	WPW10614597		Knob, Burner (white)   (Replaces: W10614597)				$ 20.98
5	WP98007225		Screw   (Replaces: 98007225)				$ 6.26
6	WPW10578251		Grate, Burner (black)   (Replaces: W10578251)				$ 42.40
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 10.67
8	3184020		Wire, Ground   (Replaces: 98014544)				$ 74.50
9	W10831827		Bumper, Cooktop   (Replaces: 98013389)		Appelez-nous	-
10	W11233072		Screw   (Replaces: 98005000)			Immediately	$ 12.62
11	WP98017461		Cap, Burner (black)   (Replaces: 98017461)				$ 60.75
12	W10850756		Screw, Ground   (Replaces: 8534079)				$ 6.98
13	WPW10636224		Burner, Standard   (Replaces: W10636224)			Immediately	$ 59.23
14	WPW10613666		Bracket, Anti-tip   (Replaces: W10613666)				$ 15.39
15	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 26.33
1A	W10620405		Guide, Use And Care		Appelez-nous	-
1B	98007130		Tips, Safe Cooking (english)		Appelez-nous	-
1C	W10142327		Tech Sheet		Appelez-nous	-
2A	WPW10535686		Cooktop (black)   (Replaces: W10535686)				$ 286.53
3A	W10620546		Panel, Manifold (black)		Appelez-nous	-
4A	WPW10614598		Knob, Burner (black)   (Replaces: W10614598)				$ 20.68
NI	549193		Clamp, Cord   (Replaces: 98005894)				$ 12.05
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10544364		Harness, Main		Appelez-nous	-
NI	98005896		Clip, Wire		Appelez-nous	-
NI	3196696		Clip, Harness		Appelez-nous	-
NI	98015022		Bushing, Snap		Appelez-nous	-
NI	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 28.66
