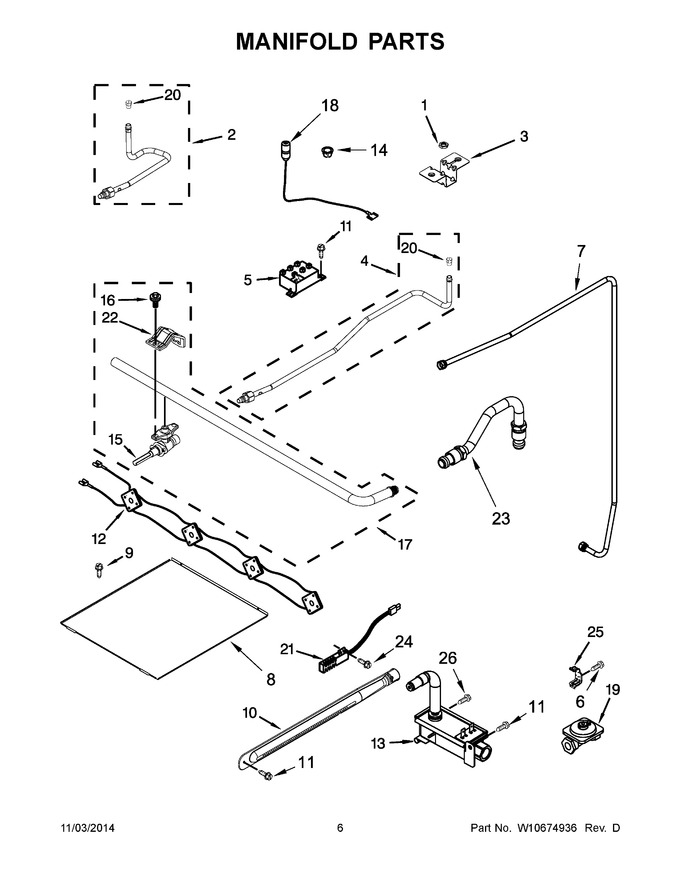

04 - Manifold Parts


05 - Chassis Parts


06 - Broiler Parts


07 - Door Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98017323		Nut		Appelez-nous	-
2	W11550283		Assembly, Tubing (left Front)   (Replaces: W10620002)		Appelez-nous	-
3	W11715913		Bracket, Venturi   (Replaces: W10122103)		Appelez-nous	-
4	W11213836		Assembly, Tubing (left Rear)   (Replaces: W10512770)		Appelez-nous	-
5	W11590249		Spark Module   (Replaces: 6610341)				$ 21.01
6	WP98007225		Screw   (Replaces: 98007225)				$ 6.26
7	W11628651		Tubing, Manifold To Regulator   (Replaces: W10619922)		Appelez-nous	-
8	W11688713		Spread, Flame (bake)   (Replaces: W10670196)		Appelez-nous	-
9	WP3400832		Screw (black)   (Replaces: 98006726)			Immediately	$ 6.98
10	W11220387		Burner, Oven   (Replaces: W10650358)				$ 170.21
11	W10837731		Screw   (Replaces: 98006633)				$ 7.07
12	WPW10548355		Harness, Switch   (Replaces: W10548355)				$ 72.05
13	WP98014893		Valve, Oven   (Replaces: 98014893)				$ 141.73
14	WPW10278150		Clip, Ignitor   (Replaces: W10278150)				$ 40.61
15	WPW10141709		Valve, Saddle (left Rear, Right Rear, Right Front)   (Replaces: W10141709)			Immediately	$ 207.32
16	98017517		Screw		Appelez-nous	-
17	W10523235		Tube, Manifold		Appelez-nous	-
18	WPW10209656		Ignitor, Top (black)   (Replaces: W10209656)			Immediately	$ 73.07
19	W11346659		Regulator   (Replaces: W10633327)				$ 239.30
20	WP98017348		Orifice, Natural (9.5k) (left Rear / Right Rear / Right Front)   (Replaces: 98017348)				$ 78.85
21	W10918546		Igniter, Hot Surface   (Replaces: 98005652)			Immediately	$ 55.40
22	W10574737		Bracket, Valve		Appelez-nous	-
23	W11684515		Tubing (regulator To Oven Valve)   (Replaces: W10512963)		Appelez-nous	-
24	W10837674		Screw   (Replaces: W10146346)				$ 6.90
25	98007410		Bracket, Regulator		Appelez-nous	-
26	98013634		Screw		Appelez-nous	-
15A	W10141711		Valve, Saddle (left Front)				$ 243.84
18A	WPW10209657		Ignitor, Top (natural)   (Replaces: W10209657)				$ 48.56
20A	WP98017349		Orifice, Natural (11.5k) (left Front)   (Replaces: 98017349)				$ 80.62
2A	W10861724		Assembly, Tubing (right Front)   (Replaces: W10512771)		Appelez-nous	-
4A	W11239659		Assembly, Tubing (right Rear)   (Replaces: W10544971)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10032030		Kit, Lp Conversion   (Replaces: W10032030)				$ 96.82
