01 - Cover Sheet

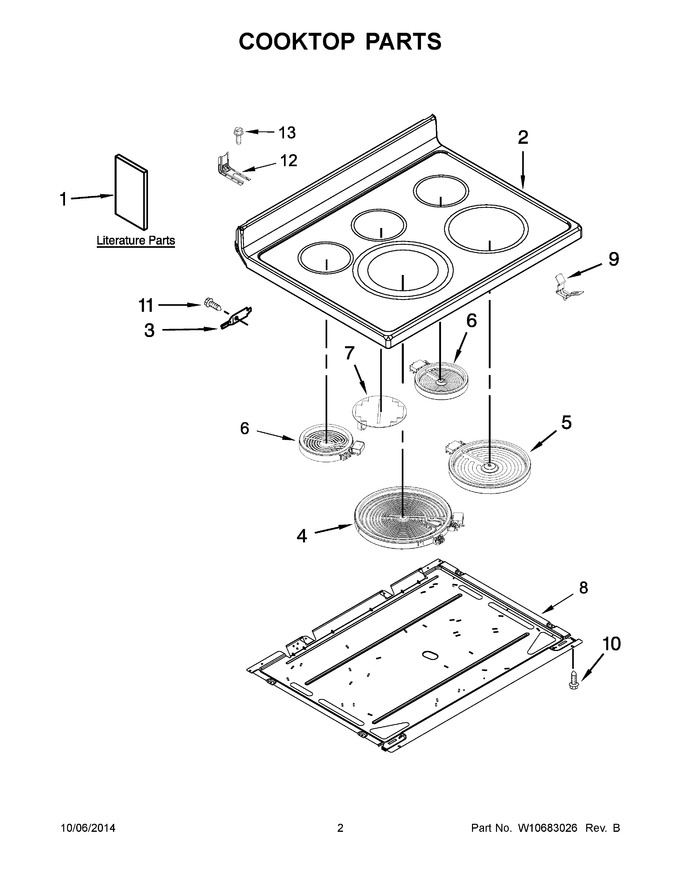

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403811		Instructions, Installation		Appelez-nous	-
2	W10691695		Cooktop (white)   (Replaces: W10655902)				$ 464.93
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 11.30
4	W11517959		Element (3000/1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 121.00
5	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 201.29
6	W11171119		Element (1200w) (right Rear And Left Rear)   (Replaces: 8273994)			Immediately	$ 164.01
7	W11047668		Element, Warm Zone (center Rear)   (Replaces: W10388271)				$ 113.96
8	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 122.99
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
11	3196172		Screw			Immediately	$ 11.55
12	W11447673		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.64
13	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 26.33
1A	W10667165		Guide, Use And Care		Appelez-nous	-
1B	W10400064		Guide, Quick Start (english)		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10667168		Tech Sheet, English		Appelez-nous	-
2A	W10691696		Cooktop (black)   (Replaces: W10655905)				$ 466.43
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10349714		Harness, Wire (main)		Appelez-nous	-
NI	W10744211		Harness, Cooktop (left)   (Replaces: W10349708)				$ 156.64
NI	W11134550		Harness, Cooktop (right)   (Replaces: W10349654)				$ 196.20
NI	W11172424		Harness, Sensor   (Replaces: W10083650)				$ 97.52
NI	W11134594		Harness, Warm Zone   (Replaces: W10278580)				$ 165.19
