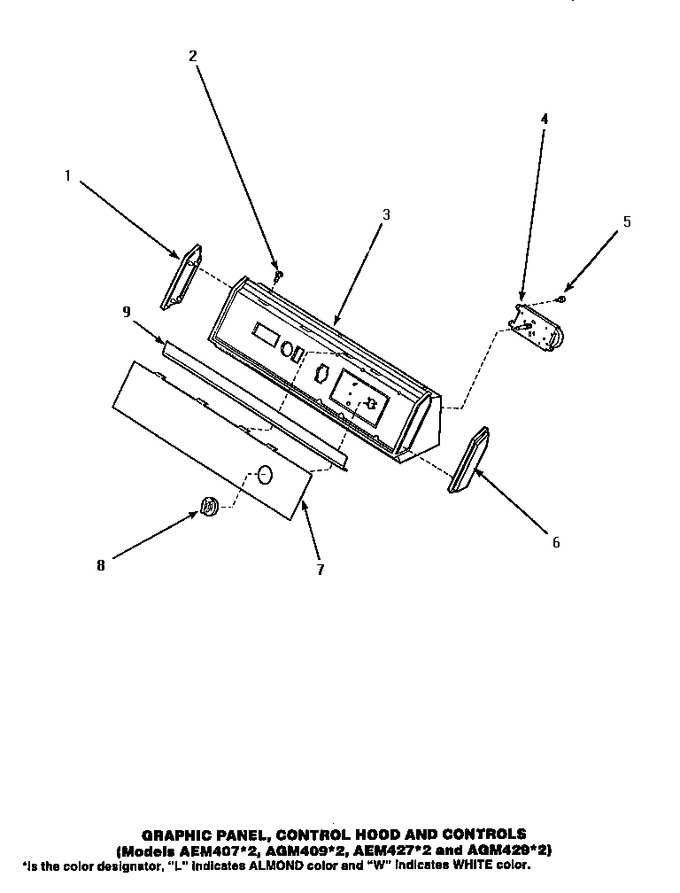

06 - Graphic Panel, Control Hood & Controls


07 - Heater Box Assy Replacement


08 - Heater Box Assy, Original


09 - Loading Door


10 - Lower Access Panel, Front Panel & Seal


11 - Motor, Exhaust Fan & Belt


12 - Mtr Conn Block/term & Extractor Tool


13 - Power Cord


14 - Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31249		Cap,end-l.h.-chrome		Appelez-nous	-
2	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
3	62745		Assy,hood & Mtg Plate		Appelez-nous	-
3	59937		Assy, Hood Mtg		Appelez-nous	-
4	501881		Timer		Appelez-nous	-
5	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)			Immediately	$ 7.04
6	31248		Cap,end-r.h.-chrome		Appelez-nous	-
7	WP95405		Panel, Graphics Gray   (Replaces: 502204)				$ 46.08
7	502202		Panel, Graphics Black		Appelez-nous	-
8	DE81-07748A		Assy,timer Knob & Skirt White   (Replaces: 62234)				$ 133.40
8	DE81-05143A		Assy,timer Knob & Skir   (Replaces: 62176)				$ 142.77
9	61849R		Trim, Cont Pnl Top		Appelez-nous	-
	NOTE:		Note: (timers Used Are From Different Vendors. Although They Differ In Appearance, They Are Completely Interchangeable When Identified By The Same Part Number		Appelez-nous	-
