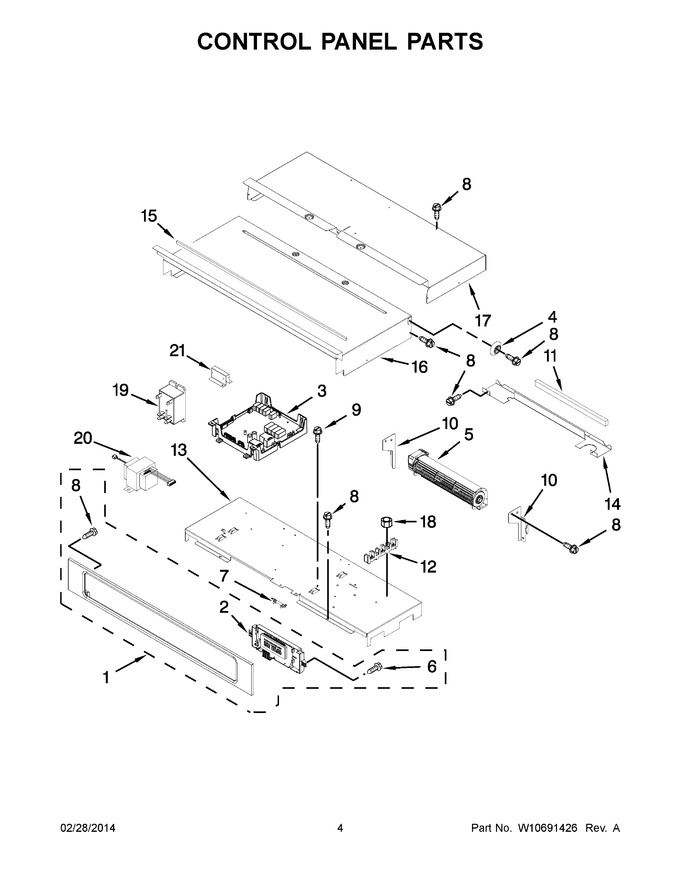

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10358171		Assembly, Control Panel (includes Overlay) (black)		Appelez-nous	-
1	W10358172		Assembly, Control Panel (includes Overlay) (white)				$ 574.41
1	W10358170		Assembly, Control Panel (includes Overlay) (stainless)		Appelez-nous	-
2	WPW10751146		Board, Display   (Replaces: W10590499)			Immediately	$ 263.37
3	W10317343		Board, Goc				$ 372.16
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	W10641253		Blower				$ 127.63
6	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 15.94
7	WPW10545255		Fuse, Thermal   (Replaces: W10436434)			Immediately	$ 25.12
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.26
10	W10283078		Bracket, Blower Right		Appelez-nous	-
10	W10351257		Bracket, Blower Left		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 6.98
12	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 31.65
13	W10347650		Tray, Electronic				$ 108.07
14	W10509164		Chassis, Divider Back		Appelez-nous	-
15	WPW10657548		Gasket, Rubber   (Replaces: W10657548)				$ 76.85
16	W10318192		Chassis, Cover Top Front 30``				$ 118.98
17	W10904156		Chassis, Cover Top Back 30``   (Replaces: W10318194)		Appelez-nous	-
18	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 6.47
19	WP9752759		Relay   (Replaces: 9752759)			Immediately	$ 172.43
20	W10354052		Transformer, Control				$ 122.98
21	W10347585		Bracket, Relay				$ 14.27
