SELECT A DIAGRAM

01 - Cover Sheet

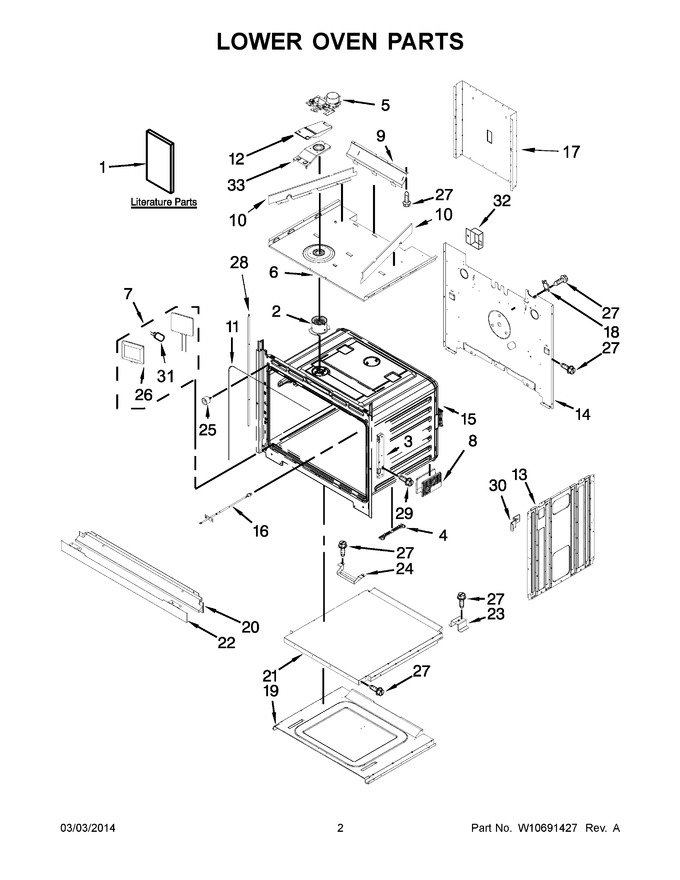

02 - Lower Oven Parts


03 - Upper Oven Parts


04 - Lower Oven Door Parts


05 - Upper Oven Door Parts


06 - Internal Oven Parts


07 - Control Panel Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10354193		Use & Care Guide		Appelez-nous	-
1	W10492435		Tech Sheet (english/french)		Appelez-nous	-
1	W10516784		Installation Instructions		Appelez-nous	-
2	W11240525		Tube, Vent   (Replaces: W10282946)				$ 21.89
3	W11613828		Receiver, Hinge   (Replaces: W10282975)			Immediately	$ 49.28
4	WPW10318220		Spacer, Base   (Replaces: W10318220)				$ 22.94
5	W10883049		Latch, Motorized   (Replaces: W10314880)			Immediately	$ 275.81
6	W10641573		Top, Chassis		Appelez-nous	-
7	WPW10519866		Assembly, Oven Light   (Replaces: W10519866)				$ 82.57
8	W10821321		Foot, Base   (Replaces: W10318219)				$ 28.72
9	W10904163		Deflector, Blower   (Replaces: W10671661)			Immediately	$ 145.53
10	W10588707		Chassis, Deflector		Appelez-nous	-
11	W11623080		Gasket   (Replaces: W10282960)			Immediately	$ 65.12
12	W10616810		Cover, Vent Exhaust				$ 59.96
13	W10318190		Side, Chassis				$ 117.20
14	W10282990		Back, Chassis		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	WP74008369		Probe, Sensor   (Replaces: 7430P043-60)			Immediately	$ 119.65
17	W10542857		Duct, Chassis Back				$ 105.99
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 100.66
19	W11238787		Base, Chassis   (Replaces: W10282900)				$ 299.70
20	WPW10506348		Assembly, Bottom Vent (white)   (Replaces: W10506348)				$ 153.68
20	WPW10351275		Assembly, Bottom Vent (black)   (Replaces: W10351275)				$ 499.86
20	WPW10327374		Assembly, Bottom Vent (stainless)   (Replaces: W10327374)				$ 297.24
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 188.61
22	W10504026		Trim, Bottom Vent (white)				$ 62.09
22	WPW10327377		Trim, Bottom Vent (stainless)   (Replaces: W10327377)				$ 154.35
22	WPW10351236		Trim, Bottom Vent (black)   (Replaces: W10351236)			Immediately	$ 130.25
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Spacer, Chassis Bottom Duct				$ 58.73
25	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 9.44
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 82.57
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
28	W10536161		Cover, Side Trim (right)   (Replaces: W10327368)				$ 43.39
28	W10536161		Cover, Side Trim (left)   (Replaces: W10327369)				$ 43.39
29	WPW10254050		Screw   (Replaces: W10254050)				$ 7.30
30	W10347649		Spacers, Front				$ 12.87
31	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 83.23
32	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
33	W10616809		Base, Vent Exhaust				$ 27.63
NI	N/P		Following Parts Not .illustrated		Appelez-nous	-
NI	W11688731		Insulation, Wrap   (Replaces: W10520715)				$ 107.03
NI	W11684789		Insulation, Cavity   (Replaces: W10282944)				$ 106.32

    View Diagram in Separate Window       Print Part List
