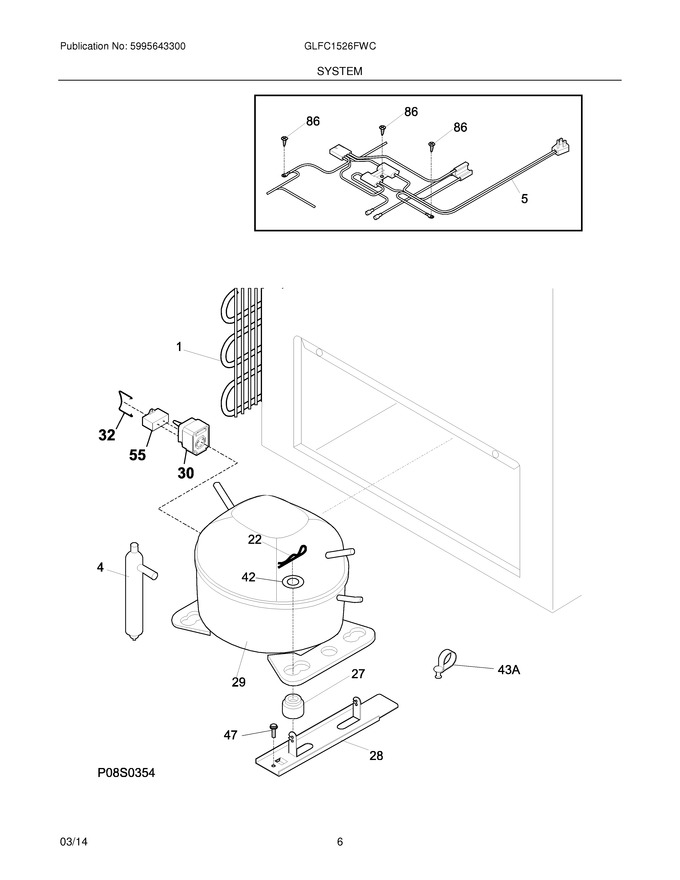

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303925238		Condenser				$ 467.78
4	5303305677		Filter-dryer   (Replaces: 216987501)			Immediately	$ 31.67
22	297320100		Clip,compressor Mtg		Appelez-nous	-
27	297301500		Grommet,compressor		Appelez-nous	-
28	297356200		Support,compressor		Appelez-nous	-
30	297259528		Controller,compressor   (Replaces: 297259507)				$ 69.35
32	216649200		Clip,controller				$ 6.30
42	216232701		Washer,flat				$ 2.10
47	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
55	297286812		Capacitor-run,250 Va ,12 Mf   (Replaces: 297286802)			Immediately	$ 11.78
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
43A	5303212614		Clip,harness Mount				$ 2.88
F29	809159002		Compressor,msa151cl1g		Appelez-nous	-
F5	297346213		Harness,main		Appelez-nous	-
NI	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 10.85
NI	297439100		Heat Exchanger				$ 107.02
