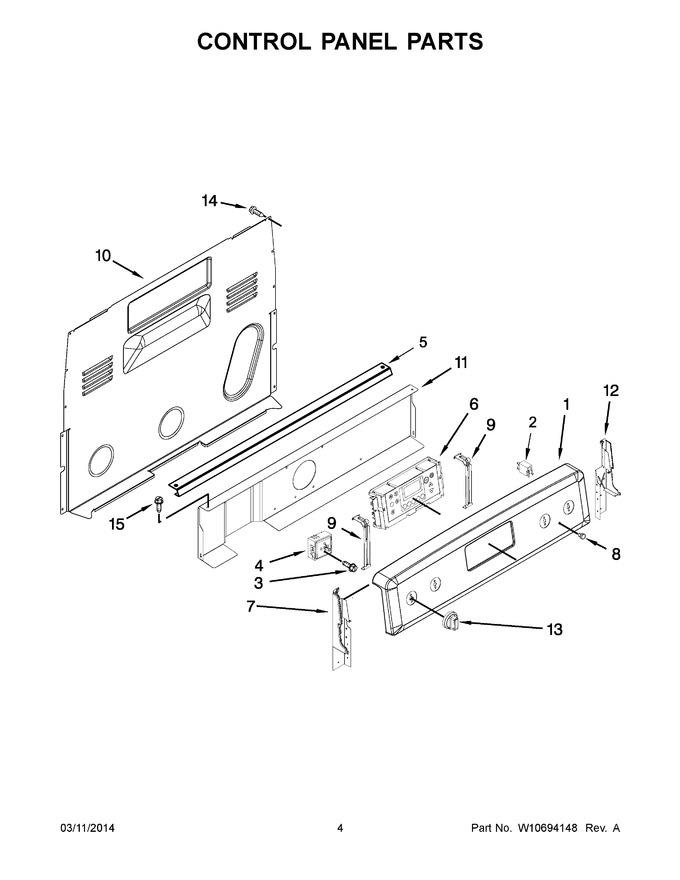

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10655833		Panel, Backguard (white)		Appelez-nous	-
1	W10655835		Panel, Backguard (black)		Appelez-nous	-
1	W11189174		Panel, Backguard (stainless)   (Replaces: W10655836)				$ 293.70
2	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 77.68
3	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.47
4	5500-287		Switch, Infinite (right Rear And Left Rear)   (Replaces: 3148951)			Immediately	$ 47.15
4	WPW10434452		Switch, Infinite (left Front)   (Replaces: W10434452)			Immediately	$ 126.76
4	WPW10411934		Switch, Infinite (right Front)   (Replaces: W10411934)			Immediately	$ 98.45
5	W10525121		Bracket, Console Mounting				$ 84.73
6	WPW10655832		Control Board (black)   (Replaces: W10655832)				$ 237.71
6	WPW10655837		Control Board (stainless)   (Replaces: W10655837)				$ 429.53
6	WPW10655829		Control Board (white)   (Replaces: W10655829)			Immediately	$ 218.45
7	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 36.39
7	W11219664		Endcap (black (left Hand))   (Replaces: W10184437)				$ 131.85
8	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
9	W11230932		Bracket, Control   (Replaces: W10324410)			Immediately	$ 72.69
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 187.75
11	W10134247		Shield, Heat			Immediately	$ 307.56
12	W11219665		Endcap (black (right Hand))   (Replaces: W10184438)				$ 36.40
12	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 52.14
13	WPW10666901		Knob (stainless)   (Replaces: W10666901)				$ 133.67
14	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
15	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 12.62
