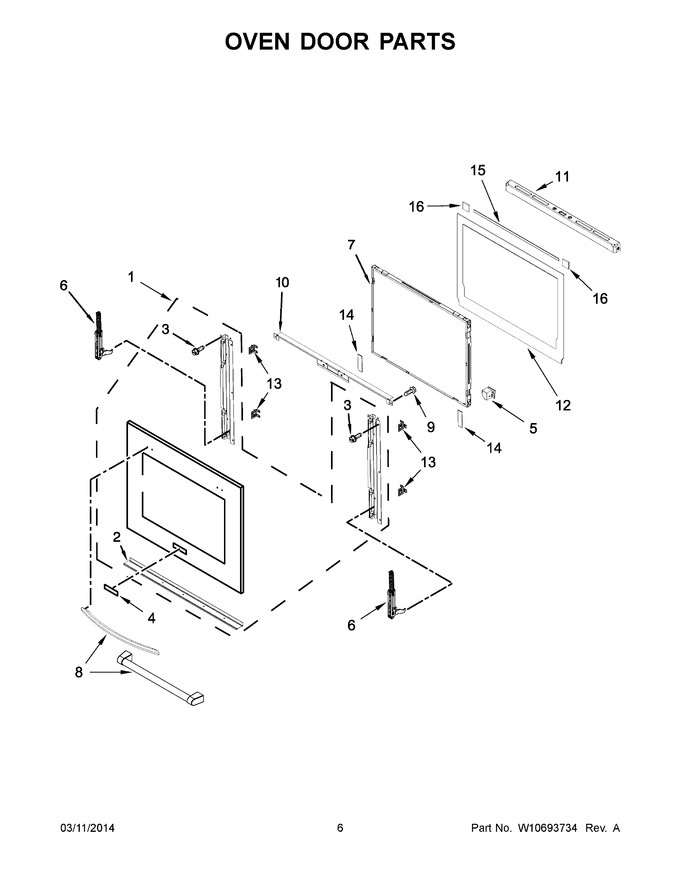

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10587572 | Assembly, Door Glass (black) |
|
- | |||||
| 1 | W10587574 | Assembly, Door Glass (white) |
|
- | |||||
| 1 | W10587571 | Assembly, Door Glass (stainless) |
|
- | |||||
| 1 | W10587570 | Assembly, Door Glass (stainless (pro Style Model)) |
|
- | |||||
| 2 | W10479068 | Bracket, Lower Door |
|
$ 17.15 | |||||
| 3 | WPY706189 | Screw (Replaces: 7101P653-60) |
|
Immediately | $ 6.47 | ||||
| 4 | WPW10320959 | Badge (stainless (pro Style Model)) (Replaces: W10320959) |
|
$ 87.80 | |||||
| 4 | WPW10243391 | Badge (grey) (Replaces: W10243391) |
|
$ 49.98 | |||||
| 4 | WPW10243393 | Badge (white) (Replaces: W10243393) |
|
$ 59.99 | |||||
| 4 | WPW10243392 | Badge (black) (Replaces: W10243392) |
|
$ 63.17 | |||||
| 5 | WPW10581826 | Bracket, Door (right) (Replaces: W10581826) |
|
$ 57.11 | |||||
| 5 | WPW10581831 | Bracket, Door (left) (Replaces: W10581831) |
|
$ 31.89 | |||||
| 6 | W10825778 | Hinge, Door (Replaces: W10419877) |
|
Immediately | $ 93.89 | ||||
| 7 | WPW10347598 | Assembly, Window Pack (Replaces: W10347598) |
|
Immediately | $ 280.76 | ||||
| 8 | W10246102A | Handle, Door (stainless Pro-style Model) (Replaces: W10246102) |
|
- | |||||
| 8 | WPW10289076 | Handle, Door (stainless) (Replaces: W10289076) |
|
$ 286.81 | |||||
| 8 | W10284917 | Handle, Door (white) |
|
$ 234.66 | |||||
| 8 | W10284916 | Handle, Door (black) |
|
$ 212.28 | |||||
| 9 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.16 | ||||
| 10 | W10459351 | Bracket, Upper, Glass |
|
$ 73.27 | |||||
| 11 | WPW10416257 | Vent, Door Top (Replaces: W10416257) |
|
$ 237.74 | |||||
| 12 | WPW10335920 | Liner, Door (Replaces: W10335920) |
|
$ 374.34 | |||||
| 13 | WPW10549747 | Clip, Spring (Replaces: W10549747) |
|
$ 17.92 | |||||
| 14 | W10840861 | Spacer (Replaces: W10517440) |
|
$ 8.89 | |||||
| 15 | W11082539 | Pad, Vent (Replaces: W10489273) |
|
$ 104.75 | |||||
| 16 | WPW10517428 | Spacer, Vent (Replaces: W10517428) |
|
Immediately | $ 10.67 |
