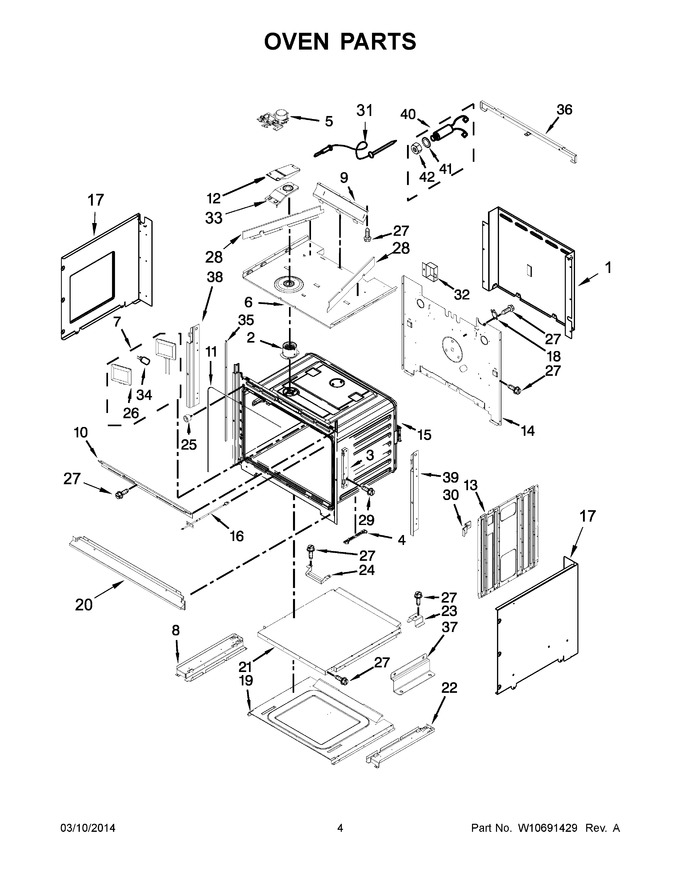

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10519707		Cover, Back Duct				$ 74.08
2	W11240525		Tube, Vent   (Replaces: W10282946)				$ 21.89
3	W11613828		Receiver, Hinge   (Replaces: W10282975)			Immediately	$ 49.28
4	WPW10318220		Spacer, Base   (Replaces: W10318220)				$ 22.94
5	W10883049		Latch, Motorized   (Replaces: W10314880)			Immediately	$ 275.81
6	W10641574		Chassis, Top		Appelez-nous	-
7	WPW10519866		Assembly, Oven Light   (Replaces: W10519866)				$ 82.57
8	W10283020		Support, Base (left)		Appelez-nous	-
9	W10904163		Deflector, Blower   (Replaces: W10671661)			Immediately	$ 145.53
10	W10495155		Vent, Center 27``				$ 91.10
11	W10856596		Gasket   (Replaces: W10282961)			Immediately	$ 94.73
12	W10616810		Cover, Vent Exhaust				$ 59.96
13	W10318190		Side, Chassis				$ 117.20
14	W10282991		Back, Chassis		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	WP74008369		Probe, Sensor   (Replaces: 7430P043-60)			Immediately	$ 119.65
17	W10351301		Chassis, Combo Side (right)		Appelez-nous	-
17	W10283028		Chassis, Combo Side (left)				$ 71.61
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 100.66
19	W10282901		Base, Chassis				$ 177.43
20	WPW10327376		Assembly, Bottom Vent (stainless)   (Replaces: W10327376)				$ 151.41
20	W10351276		Assembly, Bottom Vent (black)				$ 125.23
20	W10506349		Assembly, Bottom Vent (white)				$ 138.12
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 188.61
22	W10283021		Support, Base (right)		Appelez-nous	-
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Spacer, Chassis Bottom Duct				$ 58.73
25	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 9.44
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 82.57
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
28	W10588707		Chassis, Deflector		Appelez-nous	-
29	WPW10254050		Screw   (Replaces: W10254050)				$ 7.30
30	W10347649		Spacers, Front				$ 12.87
31	WP9755542		Probe, Temperature   (Replaces: 9755542)			Immediately	$ 82.91
32	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
33	W10616809		Base, Vent Exhaust				$ 27.63
34	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 83.23
35	W10536162		Trim, Side (black (right))   (Replaces: W10344482)				$ 33.20
35	W10536162		Trim, Side (black (left))   (Replaces: W10344483)				$ 33.20
36	W10283023		Support, Crossbar		Appelez-nous	-
37	W10283025		Side, Bracket		Appelez-nous	-
38	W10360517		Rail, Side (left)				$ 72.24
39	W11461034		Rail, Side (right)   (Replaces: W10360519)				$ 52.56
40	WPW10524044		Jack, Meat Probe   (Replaces: W10524044)				$ 179.38
41	WP9755547		Washer, Lock   (Replaces: 9755547)				$ 5.49
42	WP9755546		Nut, Hidden   (Replaces: 9755546)				$ 6.26
NI	N/P		Following Parts Not .illustrated		Appelez-nous	-
NI	W10520716		Insulation, Wrap		Appelez-nous	-
NI	W11688333		Insulation, Back   (Replaces: W10282945)		Appelez-nous	-
