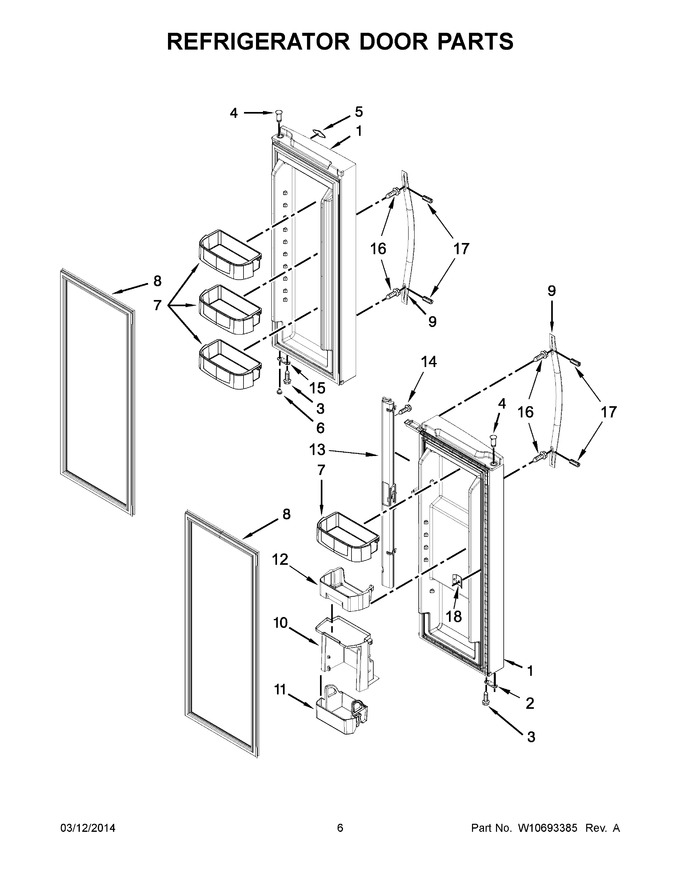

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10353181 | Refrigerator Door (includes No.8) (right Hand (white)) (Replaces: W10353181) |
|
$ 705.92 | |||||
| 1 | LW10413518 | Refrigerator Door (includes No.8) (right Hand (black)) (Replaces: W10413518) |
|
$ 546.14 | |||||
| 1 | LW10413522 | Refrigerator Door (includes No.8) (left Hand (black)) (Replaces: W10413522) |
|
$ 409.96 | |||||
| 1 | LW10393587 | Refrigerator Door (includes No.8) (left Hand (white)) (Replaces: W10393587) |
|
$ 516.87 | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 4 | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 10.89 | |||||
| 4 | W11544568 | Thimble, Top (white) (Replaces: W10366270) |
|
Immediately | $ 11.96 | ||||
| 5 | W11178521 | Badge, Whirlpool (white) (Replaces: W10481434) |
|
Immediately | $ 56.82 | ||||
| 5 | W11178521 | Badge, Whirlpool (grey) (Replaces: W10481433) |
|
Immediately | $ 56.82 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 6.47 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 64.96 | ||||
| 8 | W10460610 | Gasket, Rc (black) (Replaces: W10413465) |
|
$ 203.19 | |||||
| 8 | W10460612 | Gasket, Rc (beige) (Replaces: W10353189) |
|
Immediately | $ 209.42 | ||||
| 9 | W11459378 | Handle Assembly (stainless) (Replaces: W10356566) |
|
Immediately | $ 165.50 | ||||
| 10 | WPW10317224 | Compartment, Utility (Replaces: W10317224) |
|
$ 88.97 | |||||
| 11 | W11106787 | Condiment Caddy (Replaces: W10462299) |
|
Immediately | $ 91.70 | ||||
| 12 | WPW10326335 | Shallow Bin (Replaces: W10326335) |
|
Immediately | $ 52.61 | ||||
| 13 | W11692845 | Flipper Mullion Assembly (black) (Replaces: W10624448) |
|
$ 207.14 | |||||
| 13 | WPW10624451 | Flipper Mullion Assembly (white) (Replaces: W10624451) |
|
Immediately | $ 116.04 | ||||
| 14 | W10854958 | Screw (Replaces: 12990302) |
|
$ 6.69 | |||||
| 15 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 31.66 | ||||
| 16 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 7.66 | ||||
| 17 | WP3400203 | Screw, Set (Replaces: W10287054) |
|
Immediately | $ 4.32 | ||||
| 18 | WP939101 | Screw Anchor (Replaces: 939101) |
|
$ 6.75 |
