01 - Cover Sheet


02 - Cabinet/drum


03 - Front Panel/lint Filter

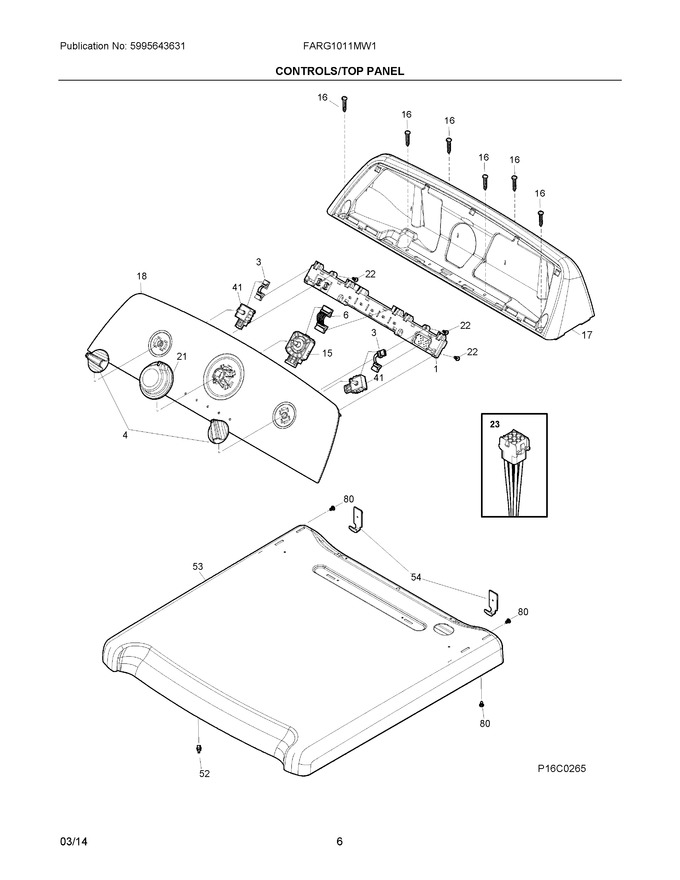

04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137332400NH		Control Board, Pc W/housing   (Replaces: 137332400)				$ 219.05
3	137155700		Harness Upper-1, Option Switch				$ 44.89
4	137053300		Knob, Switch		Appelez-nous	-
6	137348800		Harness, Upper Prog Sel		Appelez-nous	-
15	137493300		Switch, Pts Cycle, 8 Position				$ 60.96
16	3205239		Screw-hinge, Splnd Ab St/c, 10.16 X 0.50		Appelez-nous	-
17	137054110		Console, Shell J, White		Appelez-nous	-
18	137518010		Panel, Dec Control		Appelez-nous	-
21	137489600		Knob, Cycle Selector				$ 60.38
22	3205253		Screw, Pan Head, 6-20b X 0.375		Appelez-nous	-
23	137419100		Harness, Main Gas Tempst		Appelez-nous	-
41	137261000		Switch, Rotary, 4 Pos				$ 102.65
52	137362600		Pin, Panel Locator				$ 35.44
53	137274810		Panel, Top Panel, White				$ 204.59
54	137329700		Bracket, Hinge, Rear		Appelez-nous	-
80	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
