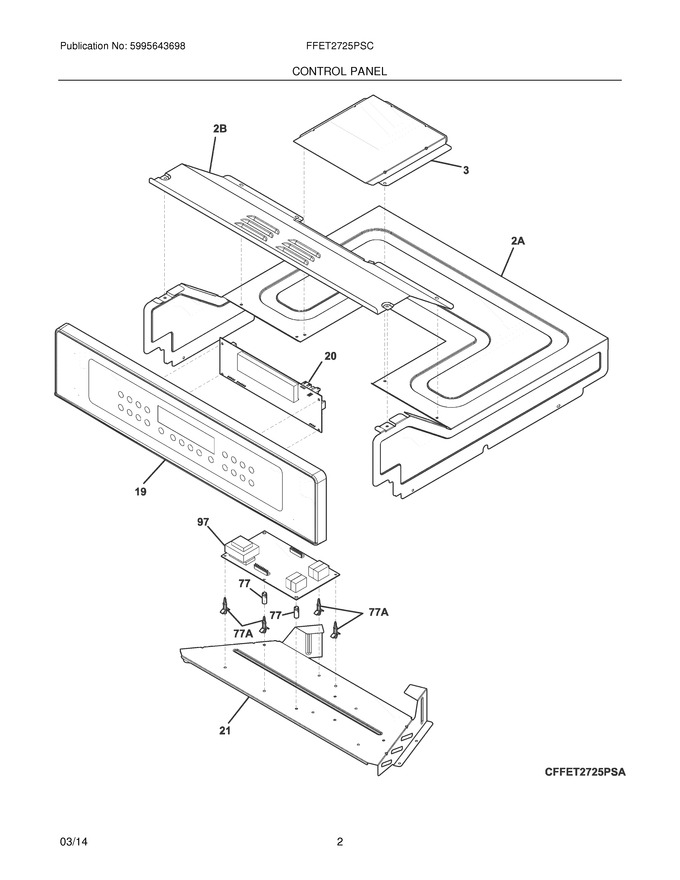

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318577800 | Box,fan Service |
|
- | |||||
| 21 | 139028000 | Bracket,mounting |
|
$ 63.00 | |||||
| 77 | 316247900 | Spacer,power Board |
|
$ 44.65 | |||||
| 2A | 139003601 | Cover,oven Top |
|
- | |||||
| 2B | 139003701 | Cover,control Access |
|
$ 33.31 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| F19 | 139038119 | Control Panel Assembly,steel/glass ,stainless/black,w/touch Pad |
|
- | |||||
| F20 | 316443887 | Control,electronic ,es610w1 ,dual Oven |
|
- | |||||
| F97 | 316443913 | Board,relay ,dual Oven |
|
$ 370.44 | |||||
| FNI | 807037601 | Harness,wiring ,control Panel |
|
- | |||||
| NI | 318165800 | Spacer |
|
$ 17.72 | |||||
| NI | 5303297477 | Screw,6-20 X 1 1/4 |
|
$ 15.17 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 |
