View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover

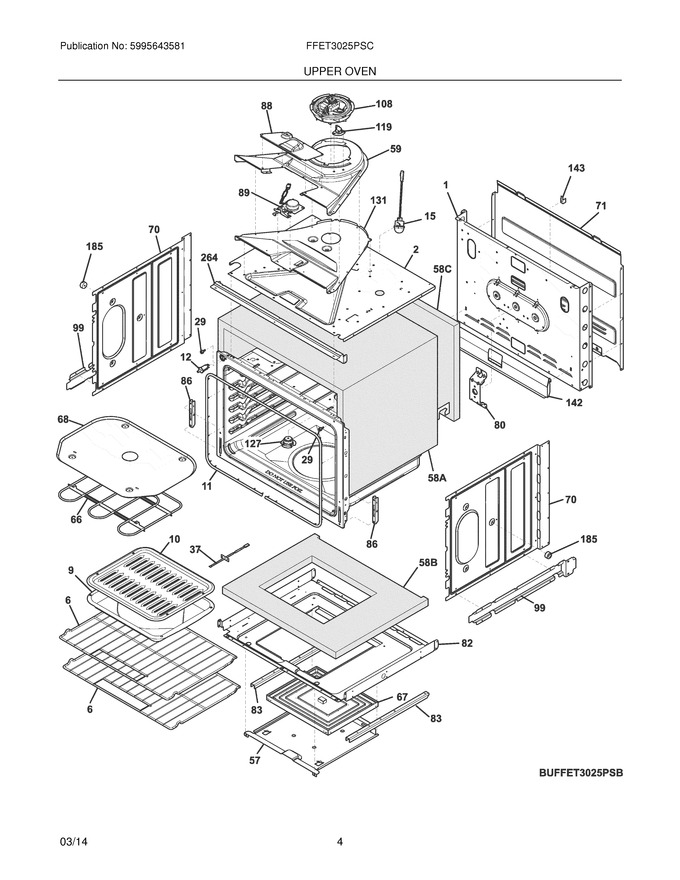

03 - Control Panel
05 - Upper Oven
07 - Lower Oven
09 - Doors
10 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 139017304 | Panel,main Back |
|
- | |||||
| 2 | 139028100 | Shield,insulation ,top |
|
- | |||||
| 6 | 139011800 | Rack,oven ,w/handle |
|
$ 128.00 | |||||
| 9 | 318138801 | Pan,broileroptional Access0ry |
|
- | |||||
| 10 | 318126401 | Insert,broiler Panoptional Access0ry |
|
- | |||||
| 11 | 807545502 | Seal,oven Door ,gray |
|
$ 140.34 | |||||
| 29 | 316517600 | Spacer,oven Door |
|
$ 12.05 | |||||
| 57 | 807988901 | Panel,service ,bake Element |
|
- | |||||
| 59 | 139027600 | Duct,cooling Fan ,upper |
|
$ 85.76 | |||||
| 68 | 807890403 | Shield,broil Element |
|
- | |||||
| 70 | 139000601 | Shield,insulation ,sides ,(2) (Replaces: 139000600) |
|
$ 72.05 | |||||
| 71 | 139020000 | Shield,rear Wire ,main Back |
|
$ 99.23 | |||||
| 80 | 139021101 | Bracket,support ,chassis/fan (Replaces: 139021100) |
|
$ 14.89 | |||||
| 82 | 807988801 | Shield,insulation ,lower |
|
- | |||||
| 83 | 808647301 | Brace,lower Shield ,(2) |
|
- | |||||
| 86 | 318561100 | Receptacle,hinge ,(2) |
|
$ 21.23 | |||||
| 88 | 5304506964 | Cover,latch Motor (Replaces: 139027900) |
|
$ 24.10 | |||||
| 99 | 139005201 | Bracket,support ,side ,(2) |
|
- | |||||
| 127 | 5304538693 | Tube Assembly,vent ,w/catalyst (Replaces: 139042600) |
|
Immediately | $ 10.03 | ||||
| 131 | 139027700 | Duct,cooling Fan ,lower |
|
$ 73.00 | |||||
| 142 | 139018000 | Shield,air Deflector ,main Back |
|
- | |||||
| 143 | 318172904 | Support,wire |
|
- | |||||
| 185 | 318531800 | Spacer,oven Shield ,(2) |
|
$ 12.76 | |||||
| 264 | 139017601 | Trim,vent ,black ,front |
|
$ 47.78 | |||||
| 58A | 139001700 | Insulation,oven Wrapper ,top & Sides |
|
- | |||||
| 58B | 807989001 | Insulation,oven Bottom |
|
$ 102.78 | |||||
| 58C | 139021400 | Insulation,oven Back |
|
- | |||||
| F108 | 318575612 | Motor,cooling Fan |
|
Immediately | $ 196.61 | ||||
| F119 | 318578506 | Thermostat,cooling Fan ,105 Deg. |
|
Immediately | $ 58.19 | ||||
| F12 | 808136601 | Switch,light ,door (Replaces: 318394802) |
|
Immediately | $ 44.04 | ||||
| F15 | 5304528790 | Lamp Assembly,round ,halogen ,w/lens ,w/bulb (Replaces: 139009000) |
|
Immediately | $ 20.56 | ||||
| F37 | 5304504897 | Sensor,oven Temp Probe (Replaces: 318562500) |
|
Immediately | $ 48.13 | ||||
| F66 | 5304521498 | Element,broil ,6 Pass ,3400w (Replaces: 139008900) |
|
Immediately | $ 87.21 | ||||
| F67 | 318601604 | Element,hidden Bake ,2000w (Replaces: 808650402) |
|
Immediately | $ 260.38 | ||||
| F89 | 139021302 | Motor,latch Assy. ,2 Pole |
|
$ 147.56 | |||||
| FNI | 807048301 | Wiring Harness,latch Motor ,upper Oven |
|
- | |||||
| FNI | 318231870 | Wiring Harness,bake Element |
|
$ 83.42 | |||||
| FNI | 318946500 | Bulb,halogen ,g9 ,25w ,120v |
|
Immediately | $ 60.44 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 807597603 | Screw,self Tapping ,8-18 X 11/32 ,(4) |
|
$ 9.22 | |||||
| NI | 316418900 | Screw,sims Lp ,no.8-32 X 5/16`` ,black |
|
$ 14.18 | |||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 318579001 | Bracket,wire |
|
$ 11.08 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 5303288566 | Screw,8 X 1/4 ,(4) (Replaces: 5303323130) |
|
$ 2.12 |
