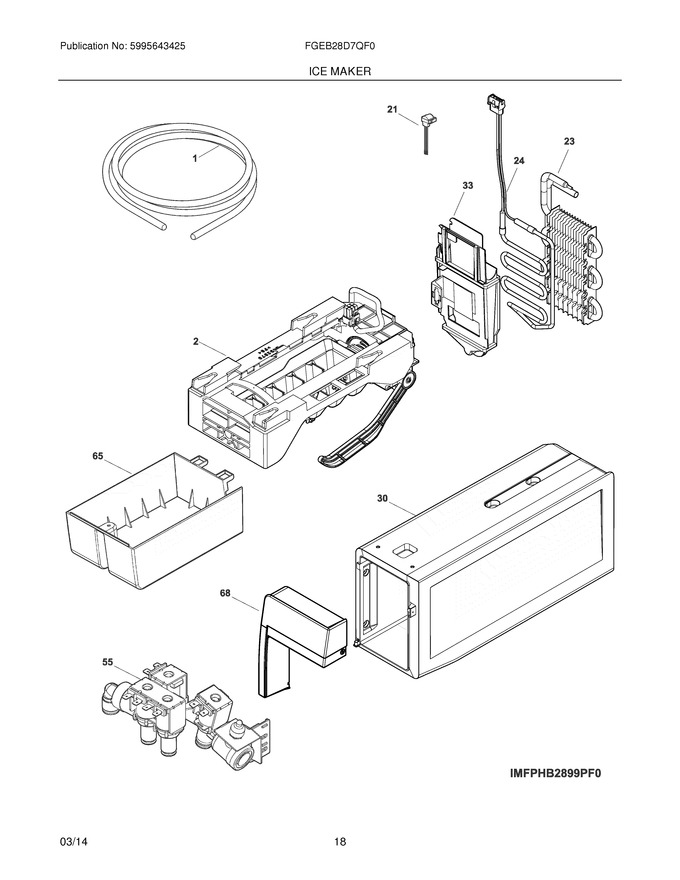

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976436		Tube-water,5/16 - 42`` ,yellow ,sd   (Replaces: 218976434)			Immediately	$ 8.51
30	242093501		Cover,icmkr & Bucket   (Replaces: 242142201)				$ 168.69
33	242094401		Housing-evaporator				$ 6.39
65	242094301		Cover-wiring				$ 33.85
65	242232701		Cover,wiring				$ 32.54
68	242095001		Cover-front,bucket Trim		Appelez-nous	-
68	242095002		Cover,-front ,bucket Trim				$ 94.82
F2	243297613		Ice Maker,complete ,115 V   (Replaces: 243297603)			Immediately	$ 117.66
F21	5303918568		Thermostat-defrost,defrost ,icemaker Evap				$ 91.43
F23	5303918567		Evaporator Kit			Immediately	$ 309.58
F24	242094802		Heater-defrost			Immediately	$ 113.92
F55	242253002		Valve-water,quad Solenoid			Immediately	$ 244.75
NI	242095425		Gasket-evap Housing   (Replaces: 242095409)				$ 10.31
NI	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
NI	242096001		Insulation,i/container Frt				$ 19.72
NI	240545201		Connector-water,straight   (Replaces: 240352102)				$ 73.71
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	241503901		Connector-water,straight ,5/16 To 1/4				$ 51.22
NI	242039701		Screw,basket Slides				$ 13.46
NI	241806601		Connector-water,straight ,5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 70.56
NI	5303918484		Chute-ice   (Replaces: 242105401)				$ 30.47
NI	241695906		Screw,10-16ab X 0.50				$ 19.13
NI	5303918784		Gasket,.4x .75x 16.00``   (Replaces: 242124801)			Immediately	$ 122.75
NI	5303918784		Gasket,.9x .75x 10.75``   (Replaces: 242124802)			Immediately	$ 122.75
NI	5303918784		Gasket,housing Funnel ,2.69x 3.05x .25 ,top,w/hole   (Replaces: 242146001)			Immediately	$ 122.75
NI	215688131		Tape,aluminum ,2`` Wd X 3.50`` L		Appelez-nous	-
NI	5303918784		Gasket-evap Housing   (Replaces: 242095401)			Immediately	$ 122.75
NI	242095402		Gasket-evap Housing,.250x.250x3.300		Appelez-nous	-
NI	242095403		Gasket-evap Housing,.250x.250x7.750		Appelez-nous	-
NI	5303918784		Gasket-evap Housing,.250x.250x5.250   (Replaces: 242095404)			Immediately	$ 122.75
NI	242095405		Gasket-evap Housing,.250x.250x6.600		Appelez-nous	-
NI	242095408		Gasket-evap Housing,.250x1.00x6.600		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
